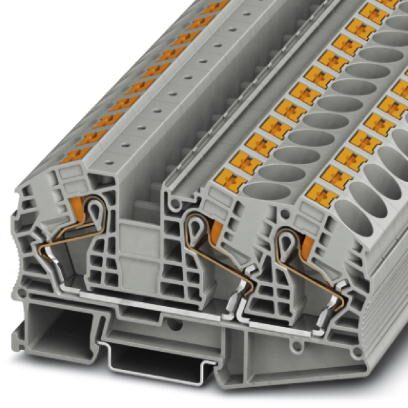

Phoenix Contact 3208760 Terminal Block
This is a Phoenix Contact multi-conductor terminal block designed for secure and efficient wiring. It features a PT 16-TWIN N model suitable for 85A current and 600V voltage. The terminal block is a single-level design compatible with wire sizes ranging from #20 to #4. It utilizes push-in connection technology for quick and reliable installation. The unit is colored gray for identification and ease of use.
Phoenix Contact 3208760 Terminal Block Specifications:
- Width: 12.2 mm
- Height: 53.3 mm
- Length: 100.2 mm
- Color: Gray
- Insulating material: PA
- Flammability rating: UL 94 VO
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation: 2.43 W
- Nominal voltage: 600 V
- Nominal current: 85 A
- Connection method: Push-in
- Number of levels: 1
- Wire cross section: 0.5 mm² - 25 mm²
- Wire size AWG: 20 - 4
- Stripping length: 18 mm
- Standards: IEC 60947-7-1
- Fire protection DIN EN 45545-2: R22, R23, R24, R26
- Surface flammability NFPA 130: Passed
- Dimensions (W x H x L): 12.2 mm x 53.3 mm x 100.2 mm
Buy the Buy Phoenix Contact PT 16-TWIN N Part Number 3208760 Online
Get your Phoenix Contact PT 16-TWIN N terminal block with push-in technology, suitable for 85A and 600V applications. With a compact single-level design, it supports wire sizes from #20 to #4, making wiring quick and secure. The gray color ensures clear identification. Ideal for railway applications, machine building, and plant engineering, this terminal offers high reliability, excellent flame resistance, and compliance with international standards. Purchase online today for dependable industrial wiring solutions.
Order your Phoenix Contact PT 16-TWIN N terminal block today and ensure reliable, fast wiring for your industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 3208760?
You can click on the BUY or RFQ button to purchase 3208760 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3208760?
You can download the 3208760 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3208760?
Phoenix Contact
