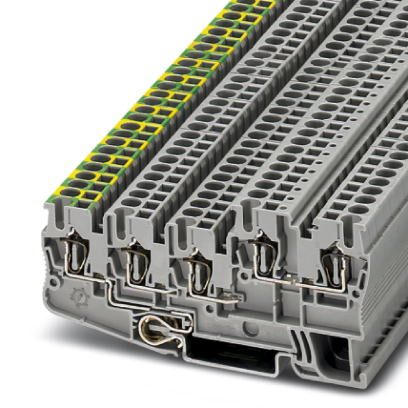

Phoenix Contact 3209060 Installation Ground Terminal Block
The PHOENIX CONTACT STIO 2,5/4-PE/2B/L terminal block provides a secure and reliable grounding connection in electrical systems. Its spring-cage connection simplifies installation and maintenance, while the robust construction ensures long-term performance. This terminal block is ideal for applications requiring a dedicated ground connection, contributing to overall system safety and compliance. It is commonly used in industrial control panels, machinery, and equipment where reliable grounding is essential.
Phoenix Contact 3209060 Installation Ground Terminal Block Specifications:
- Base Material: PA
- Flammability Rating: V0
- Rated Surge Voltage: 4 kV
- Nominal Voltage: 250 V
- Nominal Current: 18 A
- Number of Connections: 5
- Cross Section: 0.08-4 mm²
- AWG: 28-12
- Mounting Type: NS 35/7,5, NS 35/15
- Number of Levels: 3
- Overvoltage Category: III
- Maximum Power Dissipation: 0.77 W
- Connection Standard: IEC 60947-7-1/IEC 60947-7-2
- Shock Protection: DIN EN 50274
- Finger Protection: guaranteed
- Short Circuit Stability: 0.3 kA
- Fire Protection Rail Vehicles: HL 1 - HL 3
- Oxygen Index: >32 %
Buy the 3209060 PHOENIX CONTACT Installation Ground Terminal Block | myMectronic
Purchase the PHOENIX CONTACT 3209060 Installation Ground Terminal Block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 3209060?
You can click on the BUY or RFQ button to purchase 3209060 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3209060?
You can download the 3209060 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3209060?
Phoenix Contact
