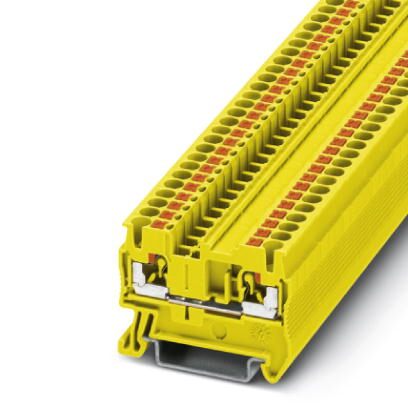

Phoenix Contact 3209511 PT 2.5 YE Terminal Block
The Phoenix Contact PT 2,5 YE feed-through terminal block offers a robust and efficient solution for connecting conductors in industrial environments. Its push-in connection simplifies wiring, eliminating the need for tools and reducing installation time. The compact design allows for space-saving integration into control cabinets, while the front connection facilitates wiring in confined spaces. This terminal block is suitable for a wide range of applications, including railway systems, machine building, plant engineering, and the process industry, ensuring reliable and secure connections for various electrical systems. It meets stringent safety standards and offers excellent insulation properties for enhanced performance and longevity.
Phoenix Contact 3209511 PT 2.5 YE Terminal Block Specifications:
- Number of positions: 1
- Number of levels: 1
- Number of connections: 2
- Potentials: 1
- Nominal cross section: 2.5 mm²
- Color: yellow
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering, Process industry
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.77 W
- Maximum load current: 28 A (with 4 mm² conductor cross section)
- Nominal current IN: 24 A (at 2.5 mm²)
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 5.2 mm
- End cover width: 2.2 mm
- Length: 48.5 mm
- Height NS 35/7,5: 36.5 mm
- Height NS 35/15: 44 mm
- Stripping length: 8 mm ... 10 mm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 0.5 mm²
