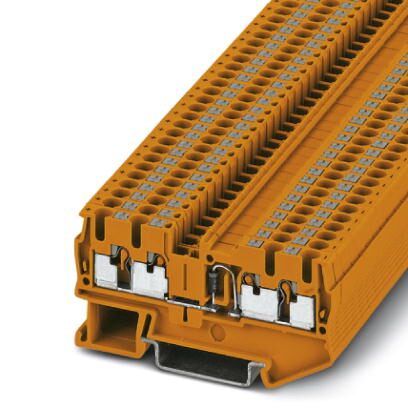

Phoenix Contact 3210271 PT 2.5 Quattro Dio Terminal Block
The PHOENIX CONTACT PT 2,5-QUATTRO-DIO/L-R OG is a component terminal block designed for efficient and reliable electrical connections. It incorporates an integrated 1N4007 diode, which influences the maximum current capacity. The block utilizes a push-in connection mechanism for simplified wiring, accommodating conductors with ferrules or solid conductors. Its compact design and front connection facilitate wiring in space-constrained environments. This terminal block is ideal for applications requiring multiple connections in a compact footprint, such as industrial control panels, power distribution systems, and automation equipment. The orange color provides visual distinction, and it is compatible with NS 35/7.5 and NS 35/15 mounting rails.
Phoenix Contact 3210271 PT 2.5 Quattro Dio Terminal Block Specifications:
- Base Article Number: 3210271
- Number of Levels: 1
- Number of Connections: 4
- Potentials: 1
- Nominal Cross Section: 2.5 mm²
- Color: orange
- Insulating Material: PA
- Flammability Rating UL 94: V0
- Rated Surge Voltage: 8 kV
- Degree of Pollution: 3
- Overvoltage Category: III
- Insulating Material Group: I
- Maximum Power Dissipation: 0.77 W
- Maximum Load Current: 0.5 A (with 4 mm² conductor cross section, rigid)
- Nominal Current IN: 0.5 A
- Nominal Voltage UN: 800 V
- Open Side Panel: Yes
- Ambient Temperature (Operation): -60 °C ... 85 °C
- Ambient Temperature (Storage/Transport): -25 °C ... 55 °C
- Permissible Humidity (Storage/Transport): 30 % ... 70 %
- Ambient Temperature (Assembly): -5 °C ... 70 °C
- Ambient Temperature (Actuation): -5 °C ... 70 °C
- Width: 5.2 mm
- End Cover Width: 2.2 mm
- Length: 72 mm
- Height NS 35/7,5: 36.5 mm
- Height NS 35/15: 44 mm
- Connection Method: Push-in connection
- Stripping Length: 8 mm ... 10 mm
- Conductor Cross Section Solid Min: 0.14 mm²
- Conductor Cross Section Solid Max: 4 mm²
- Conductor Cross Section AWG Min: 26
- Conductor Cross Section AWG Max: 12
- Conductor Cross Section Flexible Min: 0.14 mm²
- Conductor Cross Section Flexible Max: 4 mm²
- Conductor Cross Section Flexible, with Ferrule Without Plastic Sleeve Min: 0.14 mm²
- Conductor Cross Section Flexible, with Ferrule Without Plastic Sleeve Max: 2.5 mm²
- Conductor Cross Section Flexible, with Ferrule with Plastic Sleeve Min: 0.14 mm²
- Conductor Cross Section Flexible, with Ferrule with Plastic Sleeve Max: 2.5 mm²
- Internal Cylindrical Gage: A3
- EAC Approval: RU C- DE.AI30.B.01102
- EAC Approval 2: RU C- EAC DE.BL08.B.00644
