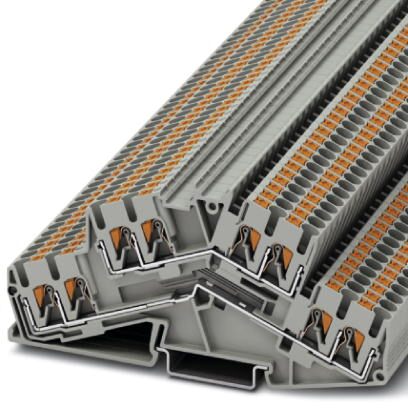

Phoenix Contact 3210609 Multi-Level Terminal Block
The Phoenix Contact multi-level and multi-conductor desk design terminal block is rated for 20A and 600V. It features two levels with push-in connection technology, suitable for conductor sizes from #26 to #12 AWG. The terminal block comes in gray color, providing efficient and secure connections in electrical systems.
Phoenix Contact 3210609 Multi-Level Terminal Block Specifications:
- Number of levels: 2
- Rated current: 20A
- Rated voltage: 600 V
- Connection method: Push-in connection
- Conductor cross section: 0.14 mm? - 4 mm? (solid and flexible)
- AWG range: 26 - 12
- Width: 5.2 mm
- Color: Gray
- Insulating material: PA
- Flammability rating: UL 94 V-0
- Dimensions: Width 5.2 mm, Length 115.2 mm, Height NS 35/7.5 55 mm, NS 35/15 62.5 mm
- Standards: IEC 60947-7-1
- Approval: UL Recognized, cUL Recognized, CSA, EAC, DNV GL/CSA/LR
Buy the Buy Phoenix Contact PTTBS 2,5-QUATTRO Part Number 3210609 Online
Purchase the Phoenix Contact PTTBS 2,5-QUATTRO online today to benefit from its robust dual-level push-in connection design, rated for 20A and 600V. This compact gray terminal block simplifies secure wiring in electrical projects, ensuring optimal system performance. Compatible with conductor sizes from #26 to #12 AWG, it meets strict safety standards including UL 94 V-0 flammability rating. Easy to install and ideal for industrial automation, its versatile design supports a wide range of application needs, streamlining your wiring and maintenance processes.
Order your Phoenix Contact PTTBS 2,5-QUATTRO 600V terminal block today and enhance your electrical system with reliable, tool-free wiring.
Frequently Asked Questions
Where can I buy Phoenix Contact 3210609?
You can click on the BUY or RFQ button to purchase 3210609 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3210609?
You can download the 3210609 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3210609?
Phoenix Contact
