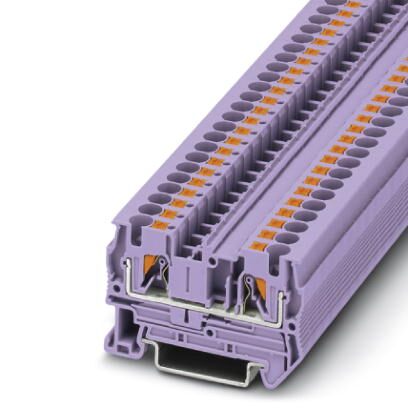

Phoenix Contact 3211761 Feed-Through Terminal Block
The Phoenix Contact PT 4 VT feed-through terminal block is a versatile solution for various industrial applications, including railway, machine building, and plant engineering. Its key features include a push-in connection for tool-free wiring, a compact design for space-saving installation, and an additional test connection for convenient maintenance. The terminal block is characterized by its system features, ensuring reliable and efficient power distribution. It is designed to meet the demands of challenging environments and provides a secure and robust connection for conductors with ferrules or solid conductors.
Phoenix Contact 3211761 Feed-Through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Potentials: 1
- Nominal cross section: 4 mm²
- Color: violet
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering, Process industry
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 1.02 W
- Designation: Level 1
- Maximum load current: 36 A (with 6 mm² conductor cross section, rigid)
- Nominal current IN: 32 A
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Width: 6.2 mm
- End cover width: 2.2 mm
- Length: 56 mm
- Height: 35.3 mm
- Height NS 35/7,5: 36.5 mm
- Height NS 35/15: 44 mm
- Connection: 1 level
- Connection method: Push-in connection
- Stripping length: 10 mm ... 12 mm
- Connection in acc. with standard: CSA
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 10
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 6 mm²
- Min. AWG conductor cross section, flexible: 24
- Max. AWG conductor cross section, flexible: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1 mm²
- Internal cylindrical gage: A4
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values
