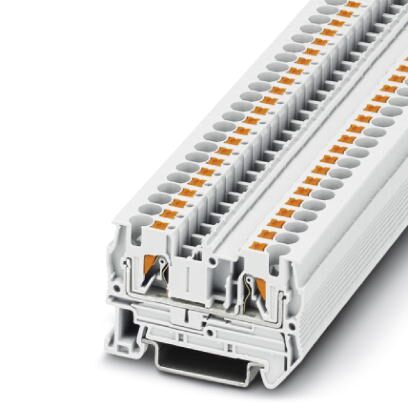

Phoenix Contact 3211778 Feed-Through Terminal Block
The PHOENIX CONTACT PT 4 WH feed-through terminal block is designed for reliable and efficient electrical connections. Featuring a push-in connection mechanism, it simplifies wiring of conductors with ferrules or solid conductors, eliminating the need for tools. Its compact design allows for space-saving installation, while the front connection facilitates wiring in tight areas. The terminal block also incorporates a testing facility, ensuring easy verification of connections. It is suitable for a wide range of industrial applications where secure and convenient terminal connections are required.
Phoenix Contact 3211778 Feed-Through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Potentials: 1
- Nominal cross section: 4 mm²
- Color: white
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum load current: 36 A (with 6 mm² conductor cross section)
- Nominal current IN: 32 A
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Packing unit: 1 STK
- Minimum order quantity: 50 STK
- Weight per Piece (excluding packing): 9.200 g
- Custom tariff number: 85369010
- Country of origin: Poland
- Connection method: Push-in connection
- Connection in acc. with standard: IEC 60947-7-1
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 10
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 4 mm²
- Min. AWG conductor cross section, flexible: 24
- Max. AWG conductor cross section, flexible: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1 mm²
- Stripping length: 10 mm ... 12 mm
- Internal cylindrical gage: A4
- Width: 6.2 mm
- End cover width: 2.2 mm
- Length: 56 mm
- Height: 35.3 mm
- Height NS 35/7,5: 36.5 mm
- Height NS 35/15: 44 mm
