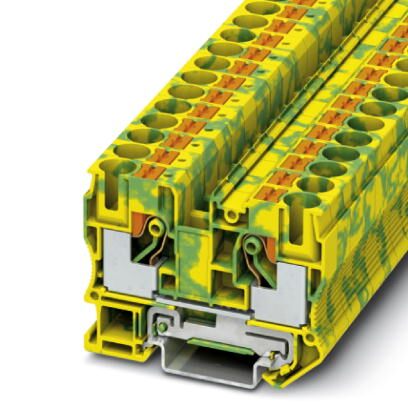

Phoenix Contact 3212131 Grounding Terminal Block
The Phoenix Contact PT 10-PE is a 1-level ground feed-through terminal block designed for wiring applications. It features push-in connection technology, supports wire sizes from #20 to #6 AWG, and is colored green-yellow. This terminal block provides reliable and easy grounding connections in electrical panels and automation systems, ensuring safety and efficiency in railway, machine building, and plant engineering environments. Its compact design allows for front wiring in confined spaces, with tested safety features including fire and shock resistance standards.
Phoenix Contact 3212131 Grounding Terminal Block Specifications:
- Connection method: Push-in connection
- Wire size: #20 - #6 AWG
- Conductor cross section: min. 0.5 mm², max. 16 mm²
- Dimensions: Width 10.2 mm, Length 67.7 mm, Height 49.5 mm
- Color: Green-yellow
- Flammability: UL 94VO
- Rated surge voltage: 8 kV
- Temperature index of insulation material: 130°C
- Standards: IEC 60947-7-2, UL 94VO, DIN EN 50274, DIN EN 45545-2
- Certifications: UL Recognized, VDE, CSA, EAC, IECEx, ATEX, DNV GL
Buy the Phoenix Contact Series Grounding Terminal: PT 10-PE
Order the Phoenix Contact PT 10-PE grounding terminal block online today and enhance your electrical panel wiring with its quick push-in connection system. supporting wire sizes from #20 to #6 AWG, it ensures safe, reliable grounding in various automation and industrial environments. Its compact, space-saving design facilitates front wiring for confined spaces. Certified for safety standards, fire resistance, and shock protection, this terminal block is ideal for railway, machine building, and plant engineering, delivering durability and efficient grounding in your projects.
Buy Phoenix Contact PT 10-PE grounding terminal block now and experience unmatched reliability and performance in electrical grounding applications.
