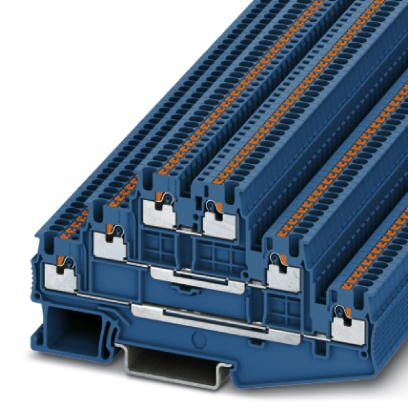

Phoenix Contact 3213726 Multi-Level Terminal Block
The PHOENIX CONTACT PT 1,5/S-3L BU is a multi-level terminal block designed for robust and efficient electrical connections. Its push-in connection simplifies wiring, eliminating the need for tools and enabling quick conductor termination with ferrules or solid conductors. The compact design and front connection make it suitable for applications with limited space, while its testing for railway applications ensures high reliability and safety. This terminal block is ideal for machine building, plant engineering, and railway infrastructure projects, offering a secure and convenient connection solution.
Phoenix Contact 3213726 Multi-Level Terminal Block Specifications:
- Number of levels: 3
- Number of connections: 6
- Nominal cross section: 1.5 mm²
- Color: blue
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.56 W
- Ambient temperature (operation): -60 °C ... 85 °C
- Ambient temperature (storage/transport): -25 °C ... 55 °C
- Ambient temperature (assembly): -5 °C ... 70 °C
- Ambient temperature (actuation): -5 °C ... 70 °C
- Connection in acc. with standard: IEC 60947-7-1
- Nominal current IN: 15 A
- Maximum load current: 15 A
- Nominal voltage UN: 500 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec.; UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1): 130 °C
- Static insulating material application in cold: -60 °C
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 3.5 mm
- Length: 97.2 mm
- Height NS 35/7,5: 53.2 mm
- Height NS 35/15: 60.7 mm
- Connection method: Push-in connection
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 1.5 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 1.5 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 14
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 1.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 1 mm²
- Stripping length: 8 mm ... 10 mm
- Internal cylindrical gage: A1 / B1
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- GTIN: 4046356572491
- Weight per Piece (excluding packing): 11.600 g
- Custom tariff number: 85369010
- Country of origin: Poland
