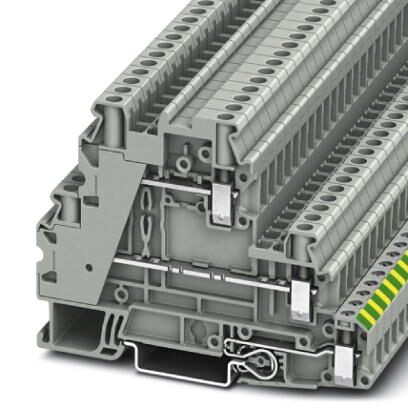

Phoenix Contact 3214360 Ground Modular Terminal Block
The PHOENIX CONTACT UT 4-PE/L/L ground modular terminal block is a versatile component for electrical distribution and grounding applications. It provides five connection points, accommodating conductors ranging from 0.14 mm² to 6 mm² (AWG 26-10). With a nominal current of 30A and a voltage rating of 500V, this terminal block is suitable for a wide range of industrial environments. The screw connection ensures a secure and reliable connection, while the gray PA insulating material and V0 flammability rating enhance safety and durability. It is designed for mounting on NS 35/7.5 and NS 35/15 DIN rails, offering flexibility in system design. Compliance with IEC standards and RoHS directives further reinforces its suitability for modern electrical installations.
Phoenix Contact 3214360 Ground Modular Terminal Block Specifications:
- Number of levels: 3
- Number of connections: 5
- Potentials: 3
- Nominal cross section: 4 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 1.02 W
- Designation Level 1: above 1 below 1
- Maximum load current: 36 A
- Nominal current IN: 30 A
- Nominal voltage UN: 500 V
- Designation Level 2: Level 2
- Open side panel: No
- Shock protection test specification: IEC 60529:2001-02
- Back of the hand protection: guaranteed
- Finger protection: guaranteed
- Result of surge voltage test: Test passed
- Surge voltage test setpoint: 7.3 kV
- Result of power-frequency withstand voltage test: Test passed
- Power frequency withstand voltage setpoint: 1.89 kV
- Result of the test for mechanical stability of terminal points: Test passed
- Result of bending test: Test passed
- Bending test rotation speed: 10 rpm
- Bending test turns: 135
- Bending test conductor cross section/weight: 0.14 mm² / 0.2 kg, 4 mm² / 0.9 kg, 6 mm² / 1.4 kg
- Tensile test result: Test passed
- Conductor cross section tensile test: 0.14 mm², 4 mm², 6 mm²
- Tractive force setpoint: 10 N, 60 N, 80 N
- Result of tight fit on support: Test passed
- Tight fit on carrier: NS 35
- Setpoint: 5 N
- Result of voltage-drop test: Test passed
- Requirements, voltage drop: ≤ 3.2 mV
- Result of temperature-rise test: Test passed
- Short circuit stability result: Test passed
- Conductor cross section short circuit testing: 4 mm², 6 mm²
- Short-time current: 0.48 kA, 0.72 kA
- Result of thermal test: Test passed
- Proof of thermal characteristics (needle flame) effective duration: 30 s
- Oscillation, broadband noise test result: Test passed
- Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
- Test spectrum: Service life test category 1, class B, body mounted
- Test frequency: f1= 5 Hz to f2= 150 Hz
- ASD level: 0.964 m/s², 2/Hz
- Acceleration: 0.58 g
- Test duration per axis: 5 h
- Test directions: X-, Y- and Z-axis
- Shock test result: Test passed
- Test specification, shock test: DIN EN 50155 (VDE 0115-200):2008-03
- Shock form: Half-sine
- Shock acceleration: 5g
- Shock duration: 30 ms
- Number of shocks per direction: 3
- Test directions shock: X-, Y- and Z-axis (pos. and neg.)
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Width: 6.2 mm
- Length: 92.7 mm
- Height: 60.1 mm
- Height NS 35/7,5: 61.7 mm
- Height NS 35/15: 69.2 mm
- Screw thread: M3
- Stripping length: 9 mm
- Tightening torque, min: 0.6 Nm
- Tightening torque max: 0.8 Nm
- Conductor cross section solid min: 0.14 mm²
- Conductor cross section solid max: 6 mm²
- Conductor cross section AWG min: 26
- Conductor cross section AWG max: 10
- Conductor cross section flexible min: 0.14 mm²
- Conductor cross section flexible max: 6 mm²
- Min. AWG conductor cross section, flexible: 26
- Max. AWG conductor cross section, flexible: 10
- Conductor cross section flexible, with ferrule without plastic sleeve min: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max: 4 mm²
- Internal cylindrical gage: A4
