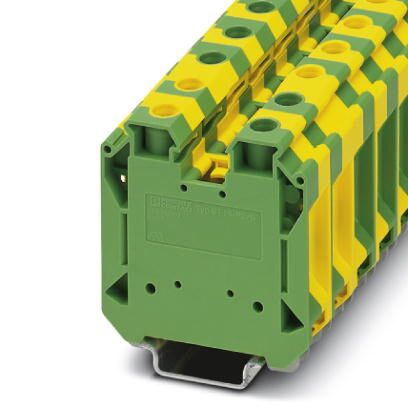

Phoenix Contact 3215928 Ground Modular Terminal Block
The PHOENIX CONTACT UT 35-PE/S ground modular terminal block provides a robust and safe grounding solution for various industrial applications. Designed with a screw connection, it ensures a secure and reliable connection for conductors ranging from 1.5 to 35 mm². The terminal block is easily mounted on NS 35/7.5 or NS 35/15 DIN rails, making it suitable for a wide range of panel configurations. Its green-yellow color clearly identifies it as a grounding point, enhancing safety and organization within electrical systems. Constructed with durable PA insulating material and a V0 flammability rating, the UT 35-PE/S offers excellent protection and reliability in demanding environments.
Phoenix Contact 3215928 Ground Modular Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 35 mm²
- Color: green-yellow
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Designation: Level 1 above 1 below 1
- Open side panel: No
- Terminal block mounting: 2.5 Nm ... 3 Nm (PE foot with mounting screw, M5)
- Oscillation, broadband noise test result: Test passed
- Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
- Test spectrum: Service life test category 1, class B, body mounted
- Test frequency: f1= 5 Hz to f2= 150 Hz
- ASD level: 1.857 (m/s²)<br>2/Hz
- Acceleration: 0,8 g
- Test duration per axis: 5 h
- Test directions: X-, Y- and Z-axis
- Shock test result: Test passed
- Test specification, shock test: DIN EN 50155 (VDE 0115-200):2008-03
- Shock form: Half-sine
- Shock acceleration: 5g
- Shock duration: 30 ms
- Number of shocks per direction: 3
- Test directions (shock): X-, Y- and Z-axis (pos. and neg.)
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Width: 16 mm
- End cover width: 2.2 mm
- Length: 60.2 mm
- Height NS 35/7,5: 65.7 mm
- Height NS 35/15: 73.2 mm
- Connection method: Screw connection
- Screw thread: M6
- Stripping length: 18 mm
- Tightening torque, min: 3.2 Nm
- Tightening torque max: 3.7 Nm
- Connection in acc. with standard: IEC 60947-7-2
- Conductor cross section solid min.: 1.5 mm²
- Conductor cross section solid max.: 35 mm²
- Conductor cross section AWG min.: 16
- Conductor cross section AWG max.: 2
- Conductor cross section flexible min.: 1.5 mm²
- Conductor cross section flexible max.: 35 mm²
- Min. AWG conductor cross section, flexible: 16
- Max. AWG conductor cross section, flexible: 2
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 1.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 35 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 1.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 35 mm²
- Internal cylindrical gage: B9
- eCl@ss 4.0: 27141118
- eCl@ss 4.1: 27141118
- eCl@ss 5.0: 27141118
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141141
- eCl@ss 8.0: 27141141
- eCl@ss 9.0: 27141141
- ETIM 2.0: EC000901
- ETIM 3.0: EC000901
- ETIM 4.0: EC000901
- ETIM 5.0: EC000901
- ETIM 6.0: EC000901
- ETIM 7.0: EC000901
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
