Phoenix Contact 3240627 Cable Duct

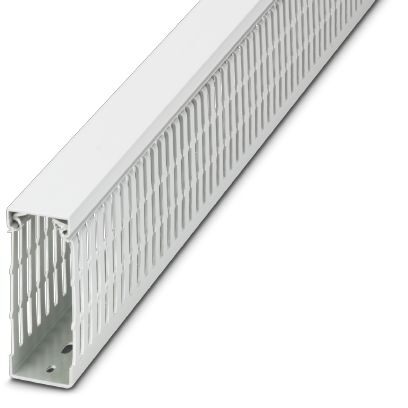

The Phoenix Contact CD 40X100 WH cable duct provides a reliable solution for cable management in industrial environments. Constructed from white PVC, this duct measures 40mm in width, 100mm in height, and 2000mm in length. Its design incorporates features like easy, burr-free cutting with the CUTFOX-CD cutter, a predetermined breaking point for tool-free bar removal, and secure conductor holding via wire retaining clips. The wide, diagonal heads of the bars ensure easy cover fitting and secure placement. Plastic body-bound rivets facilitate easy fixing using the rivet setting tool. This cable duct is suitable for applications requiring organized and protected cable routing, contributing to improved safety and efficiency in industrial settings.
Phoenix Contact 3240627 Cable Duct Specifications:
- Length (b): 2000 mm
- Width (a): 40 mm
- Height: 100 mm
- Ambient temperature (operation): -5 °C ... 60 °C
- Color: white
- Components: Lead-free
- Flammability rating according to UL 94: V0
- Material: PVC
- Halogen-free: no
- Connection in acc. with standard: CSA
- eCl@ss 4.0: 27140602
- eCl@ss 4.1: 27140602
- eCl@ss 5.0: 27140602
- eCl@ss 5.1: 27140602
- eCl@ss 6.0: 27400703
- eCl@ss 7.0: 27400703
- eCl@ss 8.0: 27400703
- ETIM 4.0: EC000012
- ETIM 5.0: EC000012
- UNSPSC 6.01: 30101815
- UNSPSC 7.0901: 30101815
- UNSPSC 11: 30101815
- UNSPSC 12.01: 30101815
- UNSPSC 13.2: 30101815
- Packing unit: 1 pc
- Minimum order quantity: 20 pc
- Weight per Piece (excluding packing): 1.0 g
- Custom tariff number: 39259020
- Country of origin: Germany
