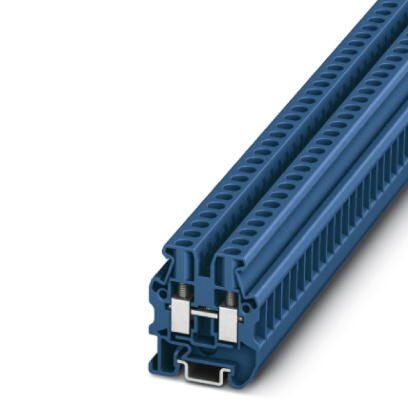

Phoenix Contact 3248031 Mini Feed-Through Terminal Block

Phoenix Contact 3248031 Mini Feed-Through Terminal Block Specifications:

• Number of levels: 1
• Number of connections: 2
• Potentials: 1
• Nominal cross section: 2.5 mm²
• Color: blue
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 0.77 W
• Designation: Level 1 above 1 below 1
• Maximum load current: 32 A
• Nominal current IN: 24 A
• Nominal voltage UN: 500 V
• Open side panel: Yes
• Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
• Back of the hand protection: guaranteed
• Finger protection: guaranteed
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 7.3 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 1.89 kV
• Result of the test for mechanical stability of terminal points: Test passed
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles (DIN 5510-2): Test passed
• Flame test method (DIN EN 60695-11-10): V0
• Oxygen index (DIN EN ISO 4589-2): >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• Surface flammability NFPA 130 (ASTM E 162): passed
• Specific optical density of smoke NFPA 130 (ASTM E 662): passed
• Smoke gas toxicity NFPA 130 (SMP 800C): passed
• Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• Width: 5.2 mm
• End cover width: 2.2 mm
• Length: 29.9 mm
• Height NS 15: 34 mm
• Connection method: Screw connection
• Screw thread: M3
• Stripping length: 9 mm
• Tightening torque, min: 0.5 Nm
• Tightening torque max: 0.6 Nm
• Connection in acc. with standard: IEC 60947-7-1
• Conductor cross section solid min.: 0.2 mm²
• Conductor cross section solid max.: 4 mm²
• Conductor cross section AWG min.: 24
• Conductor cross section AWG max.: 12
• Conductor cross section flexible min.: 0.2 mm²
• Conductor cross section flexible max.: 4 mm²
• Min. AWG conductor cross section, flexible: 24
• Max. AWG conductor cross section, flexible: 12
• Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
• 2 conductors with same cross section, solid min.: 0.2 mm²
• 2 conductors with same cross section, solid max.: 1.5 mm²
• 2 conductors with same cross section, stranded min.: 0.2 mm²
• 2 conductors with same cross section, stranded max.: 1.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 1.5 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.25 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1.5 mm²
• Internal cylindrical gage: A3
• REACh SVHC: Lead 7439-92-1
