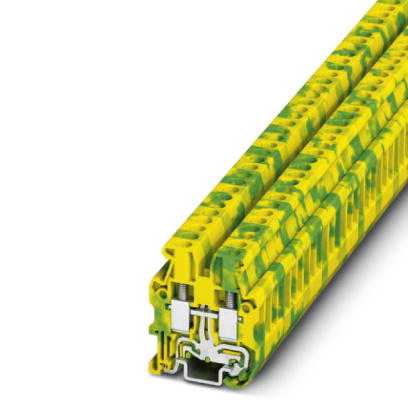

Phoenix Contact 3248032 Mini Ground Terminal Block
The PHOENIX CONTACT MUT 2,5-PE mini ground terminal block offers a compact and efficient solution for grounding connections in various industrial applications. Its space-saving design allows for dense wiring, while the clear terminal marking simplifies identification and reduces errors. The standardized plug-in bridges facilitate easy potential distribution, streamlining the wiring process. This terminal block is suitable for use in control cabinets, power distribution systems, and other electrical installations where compact size and efficient wiring are essential.
Phoenix Contact 3248032 Mini Ground Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Potentials: 1
- Nominal cross section: 2.5 mm²
- Color: green-yellow
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Open side panel: Yes
- Acceleration: 3.12 g
- Shock duration: 30 ms
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Surface flammability NFPA 130 (ASTM E 162): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
- Width: 5.2 mm
- End cover width: 2.2 mm
- Length: 29.9 mm
- Height NS 15: 34 mm
- Connection method: Screw connection
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 4 mm²
- Stripping length: 9 mm
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
