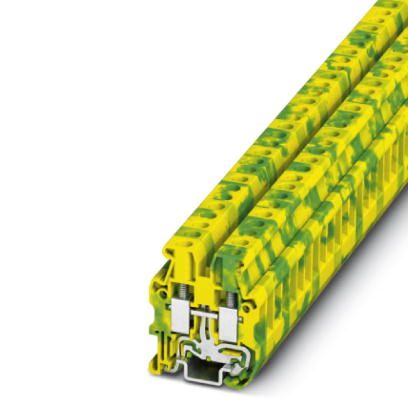

Phoenix Contact 3248037 Mini Ground Terminal Block

Phoenix Contact 3248037 Mini Ground Terminal Block Specifications:

• Number of levels: 1
• Number of connections: 2
• Nominal cross section: 4 mm²
• Color: green-yellow
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Open side panel: Yes
• Oscillation, broadband noise test result: Test passed
• Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
• Test spectrum: Service life test category 2, bogie mounted
• Test frequency: f1= 5 Hz to f2= 250 Hz
• ASD level: 6.12 (m/s² 2/Hz)
• Acceleration: 3.12 g
• Test duration per axis: 5 h
• Test directions: X-, Y- and Z-axis
• Shock test result: Test passed
• Test specification, shock test: DIN EN 50155 (VDE 0115-200):2008-03
• Shock form: Half-sine
• Shock acceleration: 5 g
• Shock duration: 30 ms
• Number of shocks per direction: 3
• Test directions (shock): X-, Y- and Z-axis (pos. and neg.)
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
• Static insulating material application in cold: -60 °C
• Width: 6.2 mm
• End cover width: 2.2 mm
• Length: 29.9 mm
• Height NS 15: 34 mm
• Note (Connection data): Please observe the current carrying capacity of the DIN rails.
• Connection method: Screw connection
• Connection in acc. with standard: IEC 60947-7-2
• Conductor cross section solid min.: 0.2 mm²
• Conductor cross section solid max.: 6 mm²
• Conductor cross section AWG min.: 24
• Conductor cross section AWG max.: 10
• Conductor cross section flexible min.: 0.2 mm²
• Conductor cross section flexible max.: 6 mm²
• Min. AWG conductor cross section, flexible: 24
• Max. AWG conductor cross section, flexible: 10
• Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
• 2 conductors with same cross section, solid min.: 0.2 mm²
• 2 conductors with same cross section, solid max.: 1.5 mm²
• 2 conductors with same cross section, stranded min.: 0.2 mm²
• 2 conductors with same cross section, stranded max.: 1.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 0.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 2.5 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.: 0.25 mm²
• 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.: 1.5 mm²
• Stripping length: 9 mm
• Internal cylindrical gage: A4
• Screw thread: M3
• Tightening torque, min: 0.6 Nm
• Tightening torque max: 0.8 Nm
• eCl@ss 4.0: 27141120
• eCl@ss 4.1: 27141120
• eCl@ss 5.0: 27141120
• eCl@ss 5.1: 27141120
• eCl@ss 6.0: 27141120
• eCl@ss 7.0: 27141120
• eCl@ss 8.0: 27141141
• eCl@ss 9.0: 27141141
• ETIM 3.0: EC000897
• ETIM 4.0: EC000901
• ETIM 5.0: EC000901
• UNSPSC 6.01: 30211811
• UNSPSC 7.0901: 39121410
• UNSPSC 11: 39121410
• UNSPSC 12.01: 39121410
• UNSPSC 13.2: 39121410
