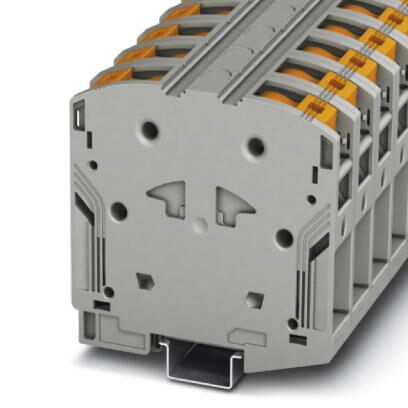

Phoenix Contact 3260050 High-Current Terminal Block

Phoenix Contact 3260050 High-Current Terminal Block Specifications:

• Number of positions: 1
• Number of levels: 1
• Number of connections: 2
• Potentials: 1
• Nominal cross section: 50 mm²
• Color: gray
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 8 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 4.73 W
• Designation: Level 1 above 1 below 1
• Maximum load current: 150 A (with 70 mm² conductor cross section)
• Nominal current IN: 150 A
• Nominal voltage UN: 1000 V AC / 1500 V DC
• Open side panel: No
• Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
• Finger protection: guaranteed
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 9.8 kV
• Result of power-frequency withstand voltage test: Test passed
• Result of the test for mechanical stability of terminal points: Test passed
• Result of bending test: Test passed
• Bending test rotation speed: 10 rpm
• Bending test turns: 135
• Bending test conductor cross section/weight: 10 mm² / 2 kg, 50 mm² / 9.5 kg, 70 mm²/10.4 kg
• Tensile test result: Test passed
• Conductor cross section tensile test: 10 mm², 50 mm², 70 mm²
• Tractive force setpoint: 90 N, 236 N, 285 N
• Result of tight fit on support: Test passed
• Setpoint: 10 N
• Result of voltage-drop test: Test passed
• Requirements, voltage drop: ≤ 3.2 mV
• Result of temperature-rise test: Test passed
• Short circuit stability result: Test passed
• Conductor cross section short circuit testing: 50 mm²
• Short-time current: 6 kA
• Result of thermal test: Test passed
• Ageing test for screwless modular terminal block temperature cycles: 192
• Proof of thermal characteristics (needle flame) effective duration: 30 s
• Result of aging test: Test passed
• Oscillation, broadband noise test result: Test passed
• Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
• Test spectrum: Service life test category 2, bogie-mounted
• Test frequency: f1= 5 Hz to f2= 250 Hz
• ASD level: 6.12 (m/s²)/2/Hz
• Acceleration: 3.12 g
• Test duration per axis: 5 h
• Test directions: X-, Y- and Z-axis
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles (DIN 5510-2): Test passed
• Flame test method (DIN EN 60695-11-10): V0
• Oxygen index (DIN EN ISO 4589-2): >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• Surface flammability NFPA 130 (ASTM E 162): passed
• Specific optical density of smoke NFPA 130 (ASTM E 662): passed
• Smoke gas toxicity NFPA 130 (SMP 800C): passed
• Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• Width: 20 mm
• Length: 101 mm
• Height NS 35/15: 105 mm
• Connection method: Power-Turn connection
• Stripping length: 30 mm ... 32 mm
• Connection in acc. with standard: IEC 60947-7-1
• Conductor cross section solid min.: 10 mm²
• Conductor cross section solid max.: 70 mm²
• Conductor cross section AWG min.: 8
• Conductor cross section AWG max.: 2/0
• Conductor cross section flexible min.: 10 mm²
• Conductor cross section flexible max.: 70 mm²
• Min. AWG conductor cross section, flexible: 8
• Max. AWG conductor cross section, flexible: 2/0
• Conductor cross section flexible, with ferrule without plastic sleeve min.: 10 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.: 50 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.: 10 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.: 50 mm²
• Cross section with insertion bridge solid min.: 10 mm²
• Cross section with insertion bridge, solid max.: 50 mm²
• Cross section with insertion bridge stranded min.: 10 mm²
• Cross section with insertion bridge, stranded max.: 50 mm²
• Cross section with insertion bridge stranded, with ferrule without plastic sleeve min.: 10 mm²
• Cross section with insertion bridge stranded, with ferrule without plastic sleeve max.: 50 mm²
