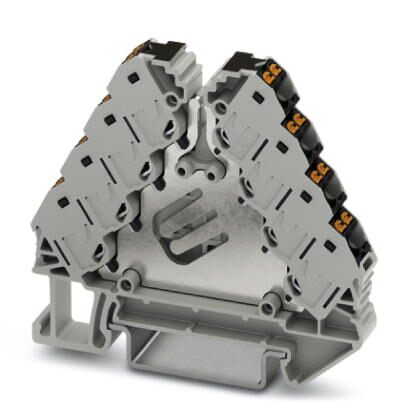

Phoenix Contact 3270157 Potential Distributor
The PHOENIX CONTACT PTRVB 4-PV /BK potential distributor offers a reliable and efficient solution for distributing power in various industrial applications. Its bridgeable design allows for flexible configuration, while the push-in connection technology ensures high contact quality and simplifies wiring. The compact size makes it suitable for installations with limited space, and the tool-free wiring further enhances convenience. This distributor is ideal for use in control cabinets, machinery, and other electrical systems where reliable power distribution is essential.
Phoenix Contact 3270157 Potential Distributor Specifications:
- Nominal Voltage: 250 V
- Nominal Current: 17.5 A
- Cross Section: 0.14 - 2.5 mm²
- AWG: 14 - 26
- Connection Method: Push-in connection
- Number of Positions: 2
- Number of Connections: 16
- Width: 8.3 mm
- Length: 64 mm
- Color: gray
- Color of Connection Elements: black
- Mounting: NS 35/7.5, NS 35/15
- Number of Levels: 4
- Potentials: 1
- Nominal Cross Section: 1.5 mm²
- Flammability Rating: V0
- Rated Surge Voltage: 4 kV
- Overvoltage Category: III
- Maximum Power Dissipation: 0.56 W
- Maximum Load Current: 24 A
- Maximum Total Current: 37 A
- Open Side Panel: Yes
- Stripping Length: 8 - 10 mm
- Connection Standard: IEC 60947-7-1
