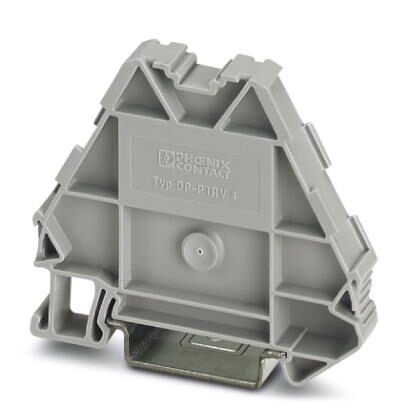

Phoenix Contact 3270163 Spacer Plate
The Phoenix Contact DP-PTRV 4 spacer plate (part number 3270163) is a crucial component for optimizing terminal block arrangements. This spacer plate provides a defined distance between terminal blocks, facilitating efficient wiring and clear labeling. It's particularly useful when integrating marking materials like UC-TMF and UCT-TMF, allowing for customized identification of circuits. Designed to be compatible with PTRV marshalling panels, this spacer plate contributes to organized and maintainable electrical systems in industrial environments. Its robust PA construction and V0 flammability rating ensure reliable performance and safety.
Phoenix Contact 3270163 Spacer Plate Specifications:
- Packing unit: 1 STK
- Minimum order quantity: 10 STK
- GTIN: 4046356796262
- Weight per Piece (excluding packing): 8.000 g
- Custom tariff number: 85472000
- Country of origin: Poland
- Color: gray
- Material: PA
- Flammability rating according to UL 94: V0
- Width: 8.3 mm
- Length: 63.6 mm
- Height: 54 mm
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- eCl@ss 4.0: 27141120
- eCl@ss 4.1: 27141120
- eCl@ss 5.0: 27141120
- eCl@ss 5.1: 27141120
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141133
- eCl@ss 9.0: 27141133
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000886
- ETIM 6.0: EC000886
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121425
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
