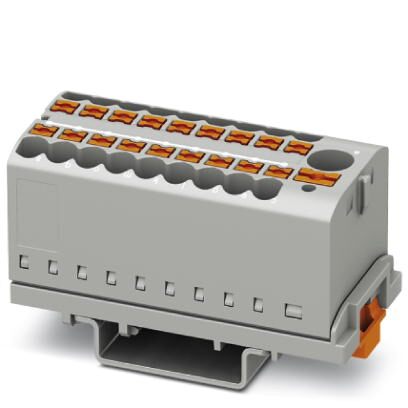

Phoenix Contact 3273110 Distribution Block
The Phoenix part number 3273110 is a specialized electronic component manufactured by Phoenix, designed for industrial automation or power management applications. It features advanced connectivity and durability suitable for demanding environments.
Phoenix Contact 3273110 Distribution Block Specifications:
- Nominal voltage: 690 V
- Nominal current: 24 A
- Connection method: Push-in connection
- Number of connections: 19
- Connection cross section: 0.14 mm² - 4 mm²
- Wire Range: 26 - 12 AWG
- Width: 28.6 mm
- Color: Gray
- Mounting type: NS 35/7.5, NS 35/15
- Material: PA (Polyamide)
- Flammability rating: UL 94 V-0
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Dimensions: Width 28.6 mm, Length 58.1 mm, Height NS 35/7.5: 32.4 mm, Height NS 15: 30.4 mm
- Maximum load current: 32 A (with 4 mm² wire), 57 A (with 10 mm² wire)
- Ambient temperature: -25°C to 85°C
- Surge voltage test: 9.8 kV passed
- Power-frequency withstand voltage: 1.89 kV passed
- Shock protection: Back of hand & finger protection guaranteed
- Standards: IEC 60947-7-1, UL Recognized, CSA Certified, VDE, EAC
- Compliance: China RoHS, environmentally friendly
Buy the Phoenix Series Distribution Equipment: 3273110
Purchase the Phoenix Distribution Block 3273110 online today for efficient industrial automation wiring. Its push-in connection technology allows quick, tool-free installation, saving time and reducing errors. Designed with durability in mind, it supports up to 690 volts and 24 amps, making it ideal for demanding environments. Its compact size, high-quality materials, and extensive certifications ensure long-lasting performance and safety. Buy now and streamline your control panel assembly with this reliable, ready-to-mount distribution solution.
Get Phoenix 3273110 today—built for robust industrial automation and reliable power distribution.
