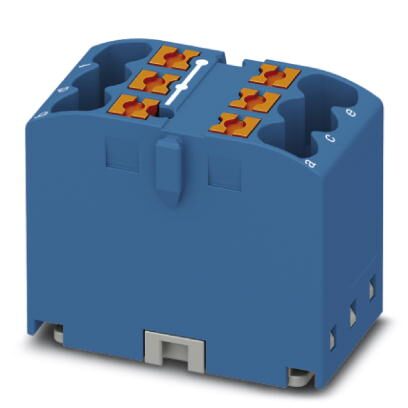

Phoenix Contact 3273266 Distribution Block 6 Circuit
The PHOENIX CONTACT PTFIX 6X2.5 BU distribution block is a versatile solution for power distribution in various industrial settings. Its flexible mounting options, including DIN rail, direct, or adhesive mounting, provide adaptability to different installation environments. The tool-free push-in connection technology significantly reduces wiring time and simplifies the process. With 6 connections and support for conductor sizes ranging from 0.14 to 4 mm², this distribution block is suitable for a wide range of applications, ensuring reliable and efficient power distribution while minimizing installation effort.
Phoenix Contact 3273266 Distribution Block 6 Circuit Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- GTIN: 4055626391984
- Weight per Piece (excluding packing): 12.000 g
- Custom tariff number: 85369010
- Country of origin: Poland
- Number of levels: 1
- Number of connections: 6
- Nominal voltage: 450 V
- Nominal current: 24 A
- Connection method: Push-in connection
- cross section: 0.14 mm² - 4 mm²
- AWG: 26 - 12
- width: 16 mm
- height: 21.7 mm
- color: blue
- mounting type: for snapping onto a DIN rail adapter
- Potentials: 1
- Nominal cross section: 2.5 mm²
- Insulating material: PA
- Flammability rating: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation: 0.77 W
- Maximum load current: 32 A
- Maximum total current: 48 A
- Nominal current IN: 24 A
- Nominal voltage UN: 450 V
- Open side panel: No
- Ambient temperature (operation): -60 °C ... 85 °C
- Ambient temperature (storage/transport): -25 °C ... 55 °C
- Permissible humidity (storage/transport): 30 % ... 70 %
- Ambient temperature (assembly): -5 °C ... 70 °C
- Ambient temperature (actuation): -5 °C ... 70 °C
- Shock protection test specification: DIN EN 50274
- Finger protection: guaranteed
- Oscillation, broadband noise test result: Test passed
- Test specification, oscillation, broadband noise: DIN EN 50155
- Test spectrum: Service life test category 2
- Test frequency: f1= 5 Hz to f2= 250 Hz
- ASD level: 6.12 m/s²
- Acceleration: 3.12 g
- Test duration per axis: 5 h
- Test directions: X-, Y- and Z-axis
- Shock test result: Test passed
- Test specification, shock test: DIN EN 50155
- Shock form: Half-sine
- Acceleration (shock): 30g
- Shock duration (shock): 18 ms
- Relative insulation material temperature index: 130 °C
- Temperature index of insulation material: 130 °C
- Static insulating material application in cold: -60 °C
- Surface flammability NFPA 130: passed
- Smoke gas toxicity NFPA 130: passed
- Calorimetric heat release NFPA 130: 28 MJ/kg
- Fire protection for rail vehicles: HL 1 - HL 3
