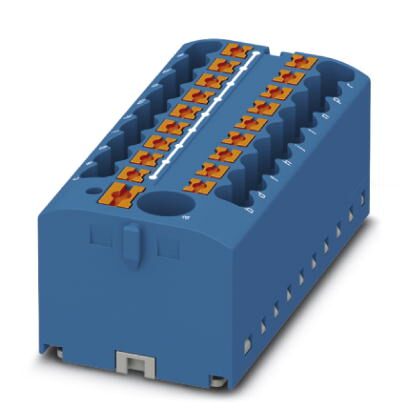

Phoenix Contact 3273376 Distribution Block
The PHOENIX CONTACT PTFIX 6/18X2,5 BU distribution block is designed for efficient and reliable power distribution in industrial applications. Its ready-to-mount design eliminates the need for manual bridging, saving up to 80% in installation time. The tool-free Push-in direct connection technology simplifies conductor connection, while the eleven color variants enable clear wiring. The block's flexible mounting options – DIN rail, direct, or adhesive – and transverse mounting capability contribute to space savings on the DIN rail. It is suitable for a wide range of applications requiring robust and time-efficient power distribution.
Phoenix Contact 3273376 Distribution Block Specifications:
- Nominal Voltage: 500 V
- Nominal Current: 24 A
- Connection Method: Push-in connection
- Number of Connections: 19
- Cross Section: 0.14 - 4 mm²
- AWG: 26 - 12
- Width: 56 mm
- Height: 21.2 mm
- Color: blue
- Mounting Type: for snapping onto a DIN rail adapter
- Insulating Material: PA
- Flammability Rating: V0
- Rated Surge Voltage: 6 kV
- Maximum Power Dissipation: 1.31 W
- Maximum Load Current: 57 A (with 10 mm² conductor cross section)
- Nominal Current (6 mm² conductor): 41 A
- Static Insulating Material Application in Cold: -60 °C
- Oxygen Index: >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface Flammability NFPA 130: passed
- Smoke Gas Toxicity NFPA 130: passed
- Calorimetric Heat Release NFPA 130: 28 MJ/kg
- Fire Protection Rail Vehicles: HL 1 - HL 3
