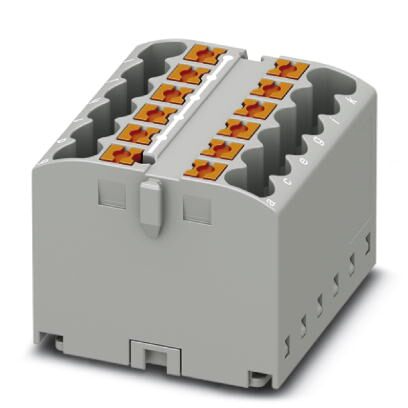

Phoenix Contact 3273416 Distribution Block
The PHOENIX CONTACT PTFIX 12X2.5-G GY distribution block is designed for efficient and reliable power distribution in industrial environments. Featuring 12 connections and a push-in connection mechanism, it simplifies installation and reduces wiring time. The block's compact design allows for space-saving mounting on DIN rails, direct mounting, or adhesive mounting, providing flexibility in various applications. Its robust construction and adherence to industry standards ensure long-lasting performance and safety.
Phoenix Contact 3273416 Distribution Block Specifications:
- Number of levels: 1
- Number of connections: 12
- Nominal voltage: 500 V
- Nominal current: 24 A
- Connection method: Push-in connection
- Cross section: 0.14 - 4 mm²
- AWG: 26 - 12
- Width: 31.2 mm
- Height: 21.2 mm
- Color: gray
- Mounting type: adhesive
- Potentials: 1
- Nominal cross section: 2.5 mm²
- Insulating material: PA
- Flammability rating: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation: 0.77 W
- Maximum load current: 24 A
- Nominal voltage UN: 500 V
- Open side panel: No
- Shock protection test specification: DIN EN 50274
- Back of the hand protection: guaranteed
- Finger protection: guaranteed
- Oscillation, broadband noise test result: Test passed
- Test specification, oscillation, broadband noise: DIN EN 50155
- Test spectrum: Service life test category 2
- ASD level: 6.12 m/s²
- Acceleration: 3.12 g
- Test duration per axis: 5 h
- Test directions: X-, Y- and Z-axis
- Shock test result: Test passed
- Test specification, shock test: DIN EN 50155
- Shock form: Half-sine
- Acceleration shock: 30g
- Shock duration: 18 ms
- Number of shocks per direction: 3
- Test directions shock: X-, Y- and Z-axis
- Relative insulation material temperature index: 130 °C
- Temperature index of insulation material: 130 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire: passed
- Oxygen index: >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130: passed
- Specific optical density of smoke NFPA 130: passed
- Smoke gas toxicity NFPA 130: passed
- Calorimetric heat release NFPA 130: 28 MJ/kg
- Fire protection for rail vehicles: HL 1 - HL 3
