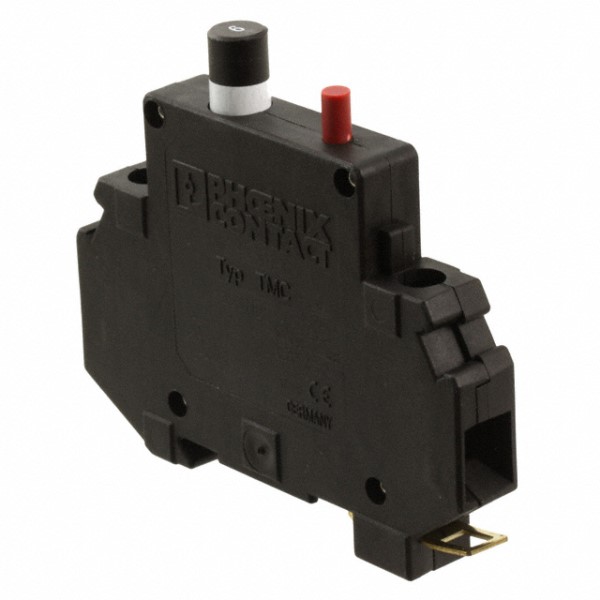

Phoenix Contact 5531105 Modular Terminal Blocks
Phoenix Contact's modular components, including terminal blocks, provide comprehensive solutions for industrial electrical and electronic needs. These terminal blocks are designed for DIN rail mounting, offering a convenient and organized way to manage wiring. They are suitable for a wide range of applications, from power distribution to signal processing, and are known for their reliability and ease of use. The TCP (Thermal Miniature Circuit Protector) series offers compact protection with easily resettable features, while TMC (Thermal Magnetic Circuit Breakers) provide overload and short-circuit protection with various configurations and interrupting capacities.
Phoenix Contact 5531105 Modular Terminal Blocks Specifications:
- Nominal Voltage: 250 V AC / 72 V DC
- Nominal Current Range: 0.10 - 10 A
- Ambient Temperature: -20°C to +60°C
- Interrupting Capacity (0.10 - 4 A): 6x rated current
- Interrupting Capacity (6 - 10 A): 8x rated current
- Maximum Interrupting Capacity: 2,000 Amps
- Insulating Material: Polyamide (PA)
- Flammability Class: V0 (UL 94)
- Approval Data: 250 V AC / 72 V DC / 0.1-10 A
- Internal Resistance (0.10 A): 81 W
- Internal Resistance (0.25 A): 14 W
- Internal Resistance (0.50 A): 3.4 W
- Internal Resistance (1.00 A): 0.9 W
- Internal Resistance (2.00 A): 0.25 W
- Internal Resistance (3.00 A): 0.11 W
- Internal Resistance (4.00 A): 0.07 W
- Internal Resistance (6.00 A): <0.05 W
- Internal Resistance (8.00 A): <0.05 W
- Internal Resistance (10.00 A): <0.05 W
Buy the 5531105 PHOENIX CONTACT Modular Terminal Blocks | myMectronic
Purchase the Phoenix Contact 5531105 terminal block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 5531105?
You can click on the BUY or RFQ button to purchase 5531105 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 5531105?
You can download the 5531105 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 5531105?
Phoenix Contact
