Phoenix Contact 5600455 Interface Module

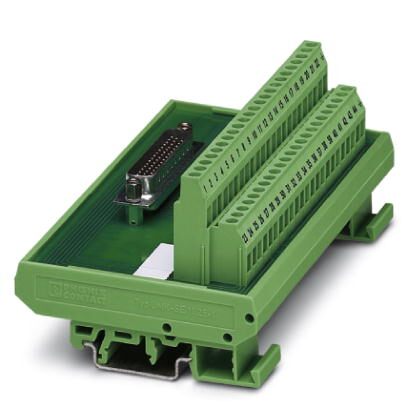

The Phoenix Contact FLKM HDSUB-78/F interface module provides a reliable connection solution for various industrial applications. This module is designed to be mounted on NS 32 or NS 35/7.5 rails, offering flexibility in system design. It incorporates a high-density D-Subminiature female connector with 78 positions, enabling robust data transmission. The screw connection ensures a secure and stable connection to the PCB, making it suitable for demanding environments. This module is ideal for applications requiring a standardized D-SUB connection within a DIN rail system.
Phoenix Contact 5600455 Interface Module Specifications:
- Packing unit: 1 pc
- Weight per Piece: 439.1 GRM
- Custom tariff number: 85369010
- Country of origin: United States
- Width: 169 mm
- Height: 77 mm
- Depth: 72 mm
- Ambient temperature (operation): -20 °C ... 50 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Max. permissible operating voltage: 125 V
- Max. perm. current (per branch): 1 A
- Number of positions: 78
- Mounting position: any
- Connection name (connection 1): PCB connection
- Connection in acc. with standard: IEC / EN
- Connection method (connection 1): Screw connection
- Conductor cross section solid min. (connection 1): 0.2 mm²
- Conductor cross section solid max. (connection 1): 4 mm²
- Conductor cross section stranded min. (connection 1): 0.2 mm²
- Conductor cross section stranded max. (connection 1): 2.5 mm²
- Conductor cross section AWG/kcmil min. (connection 1): 24
- Conductor cross section AWG/kcmil max. (connection 1): 12
- Stripping length (connection 1): 8 mm
- Screw thread (connection 1): M3
- Connection name (connection 2): D-SUB connection
- Connection method (connection 2): D-SUB socket strip
- Number of positions (connection 2): 78
- eCl@ss 4.0: 27250313
- eCl@ss 4.1: 27250313
- eCl@ss 5.0: 27250313
- eCl@ss 5.1: 27250313
- eCl@ss 6.0: 27242608
- eCl@ss 7.0: 27242608
- ETIM 2.0: EC001434
- ETIM 3.0: EC001604
- ETIM 4.0: EC001604
- ETIM 5.0: EC001604
- UNSPSC 6.01: 30211824
- UNSPSC 7.0901: 39121421
- UNSPSC 11: 39121421
- UNSPSC 12.01: 39121421
- UNSPSC 13.2: 39121421
