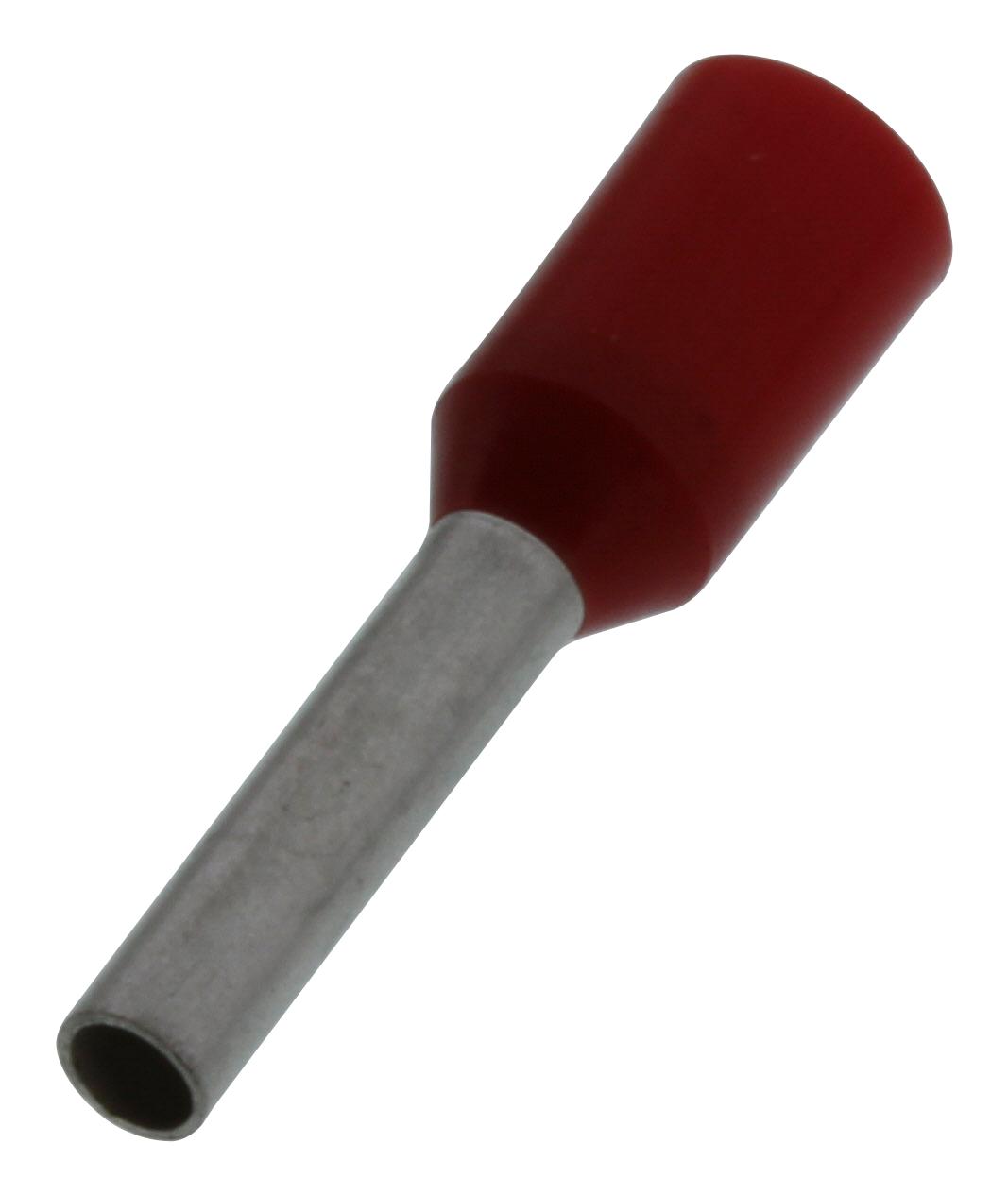

Phoenix Contact AI18RD Red Insulated Ferrule
The PHOENIX CONTACT AI 1 - 8 RD ferrule is a crucial component for ensuring secure and reliable electrical connections. Manufactured from soft, tin-plated electrolytic copper, these ferrules provide excellent conductivity and corrosion resistance. The red insulation sleeve enhances visibility and organization in wire bundles. Designed for use with conductors, the AI 1 - 8 RD ferrules prevent wire splicing and improve insulation reliability, making them suitable for a wide range of industrial applications, including control panels, machinery, and automation systems. They are free from silicone and halogen, ensuring compatibility with various materials and environments.
Phoenix Contact AI18RD Red Insulated Ferrule Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 100 pc
- Weight per Piece (excluding packing): 0.104 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Length (b): 14 mm
- Maximum stripping length: 11 mm
- Sleeve length: 8 mm
- Inner dimension of the insulating collar (d): 3 mm
- Ferrule diameter: 1.5 mm
- Insulating collar thickness: 0.3 mm
- Sleeve wall thickness: 0.15 mm
- Short-term temperature: 120 °C
- Max. permanent temperature: 105 °C
- Components: free from silicone and halogen
- Flammability rating according to UL 94: HB
- Material: E-CU
- Coating: tin-plated (galvanic)
- Connection in acc. with standard: CSA
- eCl@ss 4.0: 27060701
- eCl@ss 4.1: 27060701
- eCl@ss 5.0: 27400201
- eCl@ss 5.1: 27400201
- eCl@ss 6.0: 27400201
- eCl@ss 7.0: 27400201
- eCl@ss 8.0: 27400201
- ETIM 2.0: EC000005
- ETIM 3.0: EC000005
- ETIM 4.0: EC000005
- ETIM 5.0: EC000005
- UNSPSC 6.01: 30212109
- UNSPSC 7.0901: 27121703
- UNSPSC 11: 27121703
- UNSPSC 12.01: 27121703
- UNSPSC 13.2: 27121703
Buy the AI 1 - 8 RD PHOENIX CONTACT Red Insulated Ferrule | myMectronic
Purchase the PHOENIX CONTACT AI 1 - 8 RD ferrule securely and efficiently for your industrial needs.
