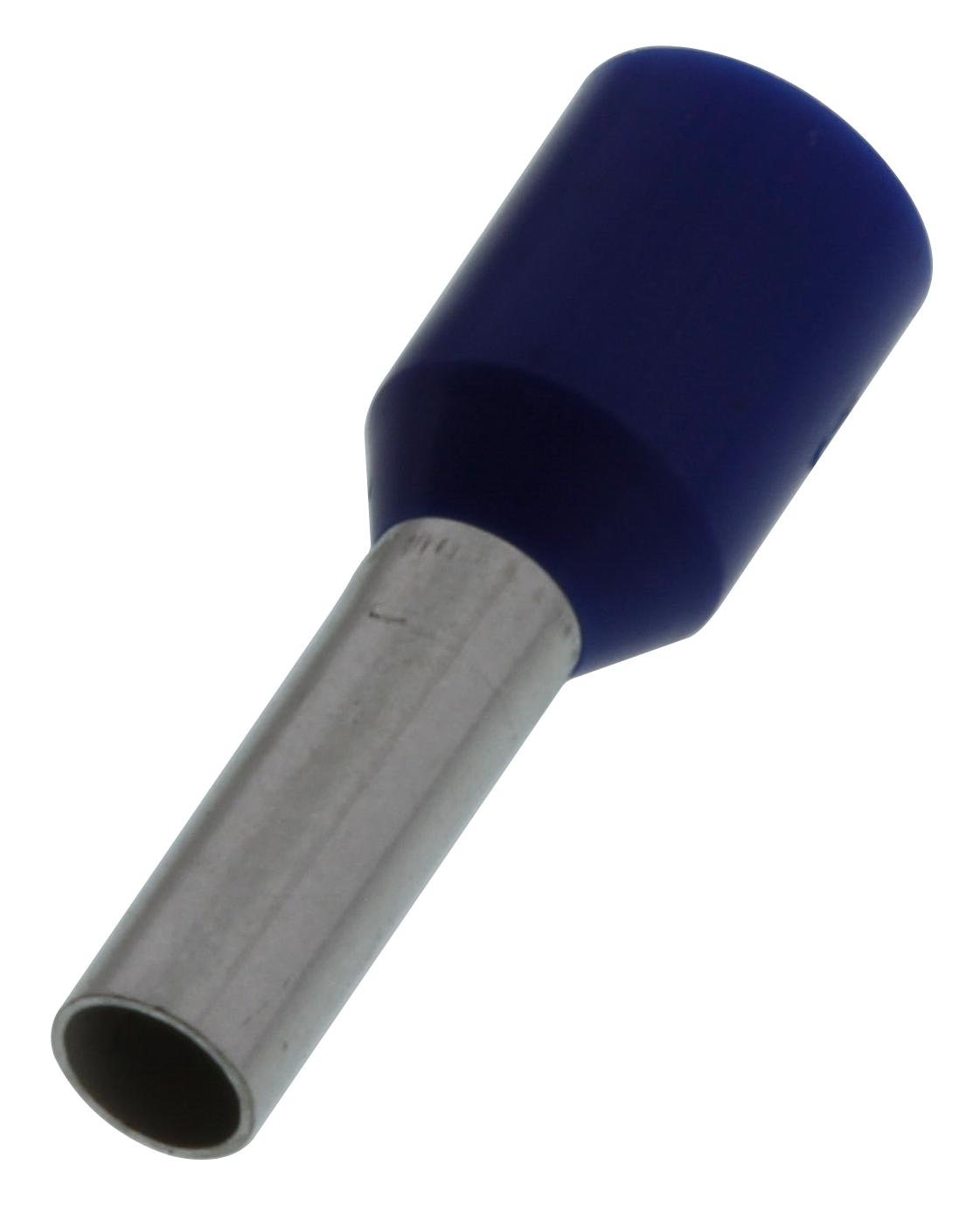

Phoenix Contact AI258BU Ferrule with Plastic Sleeve
The PHOENIX CONTACT AI 2,5 - 8 BU ferrule is designed to enhance the reliability of electrical connections. The integrated plastic sleeve provides additional insulation, minimizing the risk of short circuits and improving overall safety. Constructed from soft, tin-plated electrolytic copper, the ferrule ensures excellent conductivity and corrosion resistance. Its design prevents wire splicing, contributing to a more secure and durable connection. This ferrule is ideal for applications in industrial automation, control systems, and power distribution where reliable and long-lasting connections are essential.
Phoenix Contact AI258BU Ferrule with Plastic Sleeve Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 100 pc
- GTIN: 4017918094133
- Weight per Piece (excluding packing): 0.200 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Length (b): 14 mm
- Maximum stripping length: 11 mm
- Sleeve length: 8 mm
- Inner dimension of the insulating collar (d): 4.2 mm
- Ferrule diameter: 2.3 mm
- Insulating collar thickness: 0.3 mm
- Sleeve wall thickness: 0.15 mm
- Short-term temperature: 120 °C
- Max. permanent temperature: 105 °C
- Color: blue
- Components: free from silicone and halogen
- Flammability rating according to UL 94: HB
- Material: CU-DHP
- Coating: tin-plated (galvanic)
- Connection in acc. with standard: CSA
- China RoHS: Environmentally friendly use period: unlimited
- eCl@ss 4.0: 27060700
- eCl@ss 4.1: 27060700
- eCl@ss 5.0: 27400200
- eCl@ss 5.1: 27400200
- eCl@ss 6.0: 27400200
- eCl@ss 7.0: 27400201
- eCl@ss 8.0: 27400201
- eCl@ss 9.0: 27400201
- ETIM 2.0: EC000005
- ETIM 3.0: EC000005
- ETIM 4.0: EC000005
- ETIM 5.0: EC000005
- ETIM 6.0: EC000005
- ETIM 7.0: EC000005
- UNSPSC 6.01: 30212109
- UNSPSC 7.0901: 27121703
- UNSPSC 11: 27121703
- UNSPSC 12.01: 27121703
- UNSPSC 13.2: 27121703
