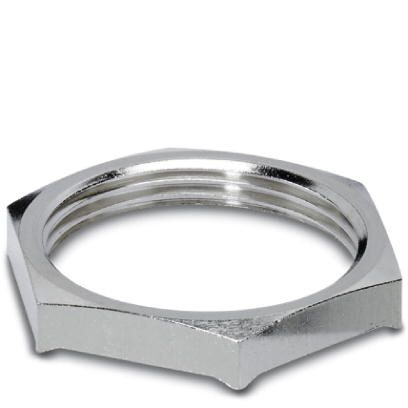

Phoenix Contact AINLEM25NS EMV Nut M25
The PHOENIX CONTACT A-INLE-M25-N-S EMV nut is a crucial component in electromagnetic compatibility (EMC) applications. It's primarily used with EMC cable glands to provide shielding and reduce electromagnetic interference. Constructed from durable, nickel-plated brass, this nut ensures a robust and reliable connection. Its M25 x 1.5 thread is compatible with a range of cable glands, making it suitable for various industrial environments where signal integrity and noise reduction are critical. The nut is also designed to assist in removing non-conductive surface coatings, simplifying installation and maintenance processes. It is halogen-free and compliant with China RoHS regulations, demonstrating a commitment to environmental responsibility.
Phoenix Contact AINLEM25NS EMV Nut M25 Specifications:
- Packing unit: 1 pc
- GTIN: 4046356924016
- Weight per Piece: 10.800 g
- Custom tariff number: 74153300
- Country of origin: Germany
- Length: 5.2 mm
- Connecting thread diameter: 25 mm
- Wrench size counter nut: 30 mm
- Hexagon angular dimension: 33.5 mm
- Ambient temperature operation: -70 °C ... 220 °C
- Material: Brass, nickel-plated
- Thread type on connection side: M25 x 1.5
- Color: silver
- Assembly instructions: for EMC cable glands, for removing a non-conductive surface coating
- Halogen-free: yes
- China RoHS: Environmentally Friendly Use Period = 50
- eCl@ss 10.0.1: 27144424
- eCl@ss 4.0: 27141200
- eCl@ss 4.1: 27141200
- eCl@ss 5.0: 27149100
- eCl@ss 5.1: 27149100
- eCl@ss 6.0: 27149100
- eCl@ss 7.0: 27069219
- eCl@ss 8.0: 27069219
- eCl@ss 9.0: 27144424
- ETIM 4.0: EC000129
- ETIM 5.0: EC000129
- ETIM 6.0: EC000940
- ETIM 7.0: EC000940
- UNSPSC 13.2: 31161716
