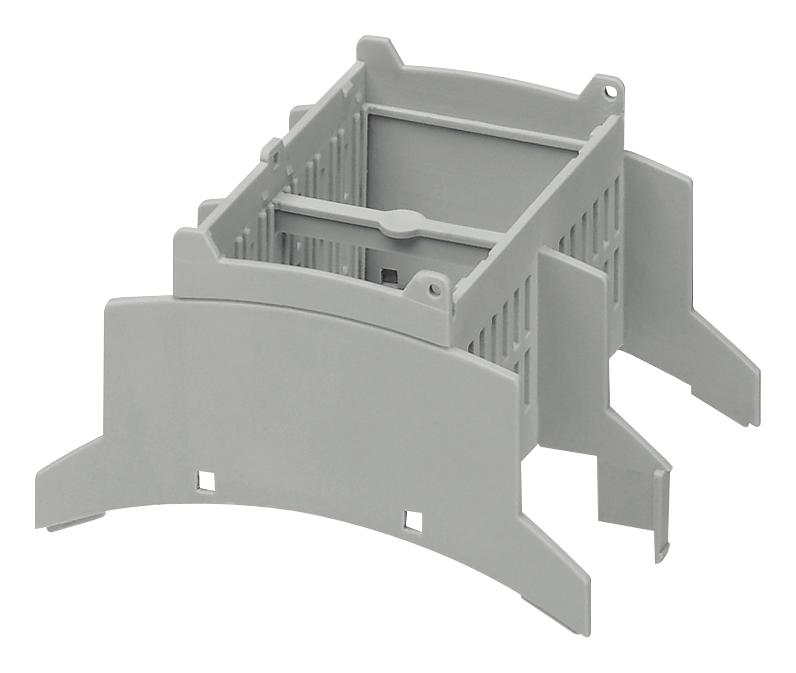

Phoenix Contact BC716OTU22KMGY Electronic Enclosure Housing
The upper part of housing designed for installation component housings features a light gray polycarbonate construction with a width of 71.6 mm and a height of 62.2 mm. It conforms to DIN EN 43880 and UL 94VO flammability standards, ensuring safety and compliance. Suitable for mounting on DIN rails or walls, it offers tool-free installation, making assembly efficient. The housing is ideal for industrial environments, providing a durable and reliable enclosure for electronic components with a weight of approximately 14.7 grams per piece and environmental compliance for unlimited use period under China RoHS.
Phoenix Contact BC716OTU22KMGY Electronic Enclosure Housing Specifications:
- Housing material: Polycarbonate
- Color: Light gray
- Dimensions: Length 89.7 mm, Width 71.6 mm, Constructional height 62.2 mm
- Flammability rating: UL 94VO
- Ambient temperature (operation): -40 °C to 105 °C
- Suitable for DIN rail or wall mounting
- Weight per piece: approximately 14.7 g
- Conforms to DIN EN 43880
- Environmental compliance: China RoHS with unlimited EFUP
- Certification: UL Recognized / EAC
- Mounting options: Tool-free, with optional bus connector for DIN rail
- Color of accessories: Transparent, green, black, or light gray
Buy the Buy Phoenix Contact Upper Housing Part Number BC716OTU22KMGY Online
Purchase the Phoenix Contact BC 71,6 OT U22 KMGY upper housing online today to enhance the durability and safety of your electronic systems. Made from high-quality polycarbonate, this light gray enclosure features dimensions of 89.7 mm length, 71.6 mm width, and 62.2 mm height. It is UL rated VO flammability compliant and suitable for DIN rail or wall mounting, offering tool-free installation for quick setup. Ideal for industrial applications, this housing protects circuitry, shields components from environmental factors, and ensures long-term reliability with environmentally friendly materials.
Order your Phoenix Contact BC 71,6 OT U22 KMGY upper housing today and ensure reliable protection for your electronic assemblies with easy installation.
