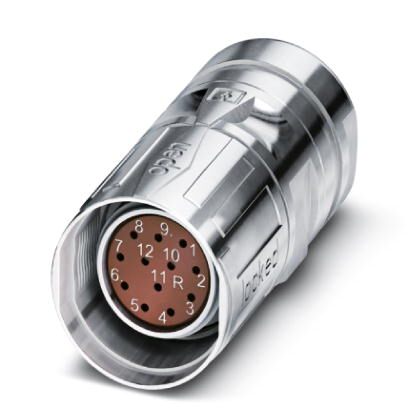

Phoenix Contact CA17F1N8A8502S 17-Position Cable Connector
The Phoenix Contact CA-17F1N8A8502S is a high-performance cable connector designed for secure and reliable data and power transmission in industrial applications. It utilizes an M23 housing with SPEEDCON locking for a robust and vibration-resistant connection. The connector features 17 positions, a socket contact type, and a crimp connection method. Its shielded design and IP67 protection make it suitable for harsh environments. Typical applications include industrial automation, power distribution, and data communication systems where a robust and reliable connection is critical.
Phoenix Contact CA17F1N8A8502S 17-Position Cable Connector Specifications:
- Packing unit: 1 STK
- GTIN: None
- Ambient temperature (operation): -40 °C ... 125 °C
- Coding: N
- Insulator material: PA 66
- Contact connection method: Crimp connection
- Type of contacts: Socket
- Number of positions: 17
- Contact diameter of power contacts: 1 mm
- Nominal current per power contact at 25°C: 8 A
- Nominal voltage, power contact: 100 V
- Overvoltage category: III
- Degree of pollution: 3
- Housing material: Metal
- Type of locking: SPEEDCON locking
- Degree of protection (when plugged in): IP67
- Thread type: M23
- Min cable diameter: 4 mm
- Max cable diameter: 6 mm
- Sealing material: FPM
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 272607xx
- eCl@ss 5.0: 27260701
- eCl@ss 5.1: 27260701
- eCl@ss 6.0: 27260702
- eCl@ss 7.0: 27440102
- eCl@ss 8.0: 27440102
- ETIM 3.0: EC001121
- ETIM 4.0: EC002635
- ETIM 5.0: EC002635
- UNSPSC 6.01: 43172015
- UNSPSC 7.0901: 43201404
- UNSPSC 11: 43172015
- UNSPSC 12.01: 43201404
- UNSPSC 13.2: 43201404
- UL Recognized: Yes
- cUL Recognized: Yes
Buy the CA-17F1N8A8502S PHOENIX CONTACT 17-Position Cable Connector | myMectronic
Purchase the Phoenix Contact CA-17F1N8A8502S cable connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact CA17F1N8A8502S?
You can click on the BUY or RFQ button to purchase CA17F1N8A8502S from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part CA17F1N8A8502S?
You can download the CA17F1N8A8502S datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of CA17F1N8A8502S?
Phoenix Contact
