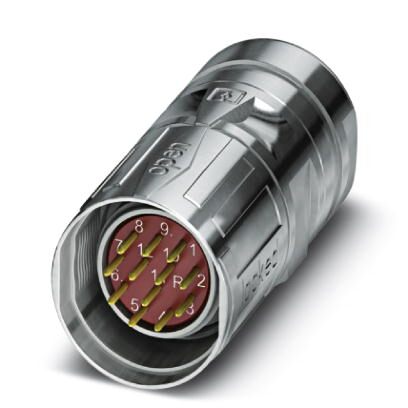

Phoenix Contact CA17M1N8A8502S 17-Position Cable Connector
The PHOENIX CONTACT CA-17M1N8A8502S is a robust, 17-position cable connector engineered for demanding industrial environments. Its shielded design and SPEEDCON fast locking system ensure reliable and efficient connections. The connector's M23 thread and IP67 protection provide excellent environmental resistance, making it suitable for applications requiring a high degree of protection. It is designed for flexible on-site assembly and vibration-resistant crimp connections, ensuring long-term performance and safety.
Phoenix Contact CA17M1N8A8502S 17-Position Cable Connector Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 60.0 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Ambient temperature (operation): -40 °C ... 125 °C
- Coding: N
- Insulator material: PA 66
- Contact connection method: Crimp connection
- Type of contacts: Male connector
- Number of positions: 17
- Contact diameter of power contacts: 1 mm
- Nominal current per power contact at 25°C: 8 A
- Nominal voltage, power contact: 100 V
- Overvoltage category: III
- Degree of pollution: 3
- Housing material: Metal
- Type of locking: SPEEDCON locking
- Degree of protection (when plugged in): IP67
- Thread type: M23
- Min. cable diameter: 4 mm
- Max. cable diameter: 6 mm
- Sealing material: FPM
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 272607xx
- eCl@ss 5.0: 27260701
- eCl@ss 5.1: 27260701
- eCl@ss 6.0: 27260702
- eCl@ss 7.0: 27440102
- eCl@ss 8.0: 27440102
- ETIM 3.0: EC001121
- ETIM 4.0: EC002635
- ETIM 5.0: EC002635
- UNSPSC 6.01: 43172015
- UNSPSC 7.0901: 43201404
- UNSPSC 11: 43172015
- UNSPSC 12.01: 43201404
- UNSPSC 13.2: 43201404
