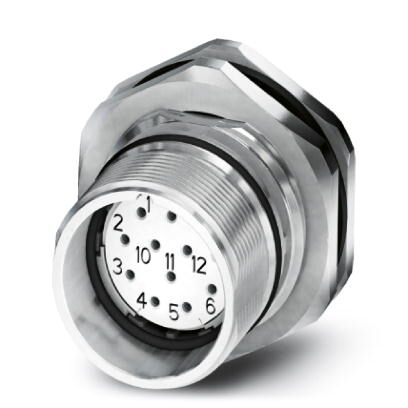

Phoenix Contact CA17S1N12HZ00 17-Position Device Connector
The PHOENIX CONTACT CA-17S1N12HZ00 is a robust device connector engineered for rear wall mounting in industrial environments. This connector offers a secure and reliable connection with its M23 thread and shielding, ensuring consistent EMC protection for signal transmission. It's designed for flexible on-site assembly and features a high degree of protection (IP67) when plugged in, making it ideal for applications requiring safe use in the field. The connector utilizes solder connections for reliable contact and is compatible with standard and SPEEDCON interlock systems.
Phoenix Contact CA17S1N12HZ00 17-Position Device Connector Specifications:
- Packing unit: 1 pc
- GTIN: 4046356821353
- Weight per Piece (excluding packing): 60.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Ambient temperature (operation): -40 °C ... 125 °C
- Insulator material: PBT
- Contact material: CuZn
- Contact surface material: Ni/Au
- Insertion/withdrawal cycles mechanical: 100
- Contact connection method: Solder connection
- Type of contacts: Socket
- Application: Signal
- Number of positions: 17
- Contact diameter of signal contacts: 1 mm
- Litz wire cross section of signal contacts max.: 1 mm²
- Nominal current per signal contact at 25°C: 8 A
- Nominal voltage, signal contact: 150 V
- Rated surge voltage: 1.5 kV
- Overvoltage category: II
- Degree of pollution: 3
- Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
- Type of locking: for standard and SPEEDCON interlock
- Degree of protection (when plugged in): IP67
- Thread type: M23
- Coding: N
- eCl@ss 5.1: 27143400
- eCl@ss 6.0: 27279200
- eCl@ss 7.0: 27440103
- eCl@ss 8.0: 27440103
- eCl@ss 9.0: 27440102
- ETIM 3.0: EC001121
- ETIM 4.0: EC002635
- ETIM 5.0: EC002061
- ETIM 6.0: EC002061
- UNSPSC 6.01: 43172015
- UNSPSC 7.0901: 43201404
- UNSPSC 11: 43172015
- UNSPSC 12.01: 43201404
- UNSPSC 13.2: 39121413
Buy the CA-17S1N12HZ00 PHOENIX CONTACT 17-Position Device Connector | myMectronic
Purchase the PHOENIX CONTACT CA-17S1N12HZ00 device connector securely online for your industrial automation needs.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact CA17S1N12HZ00?
You can click on the BUY or RFQ button to purchase CA17S1N12HZ00 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part CA17S1N12HZ00?
You can download the CA17S1N12HZ00 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of CA17S1N12HZ00?
Phoenix Contact
