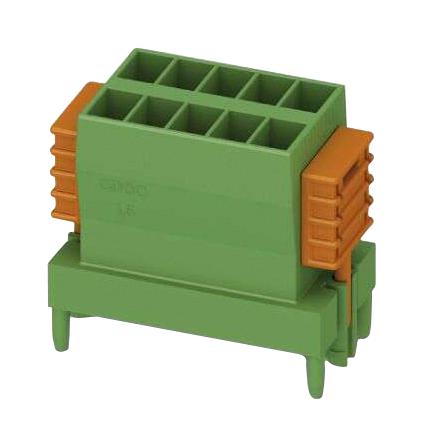

Phoenix Contact CDDC153PV35 PCB Connector
The PCB direct plug CDDC 1.5/3-PV-3.5 is a versatile, vibration-resistant connector featuring SKEDD direct plug-in technology. Designed for PCB applications, it supports a nominal current of 8A and rated voltage of 160V. Its green housing, made of PA with UL 94 vo flammability rating, includes a self-locking flange, linear pinning, and space-efficient double-row contact arrangement. Suitable for both chemically tin-plated and HAL surfaces, it offers easy hand insertion, high packing density, and compatibility with crimped conductors from 26 to 16 AWG.
Phoenix Contact CDDC153PV35 PCB Connector Specifications:
- Nominal current: 8 A
- Rated voltage: 160 V (III/2)
- Conductor cross section: 0.14 mm² ... 1.5 mm² (26-16 AWG)
- Housing material: PA, flammability rating UL 94 vo
- Housing color: Green (6021)
- Connection method: Crimp connection
- Pin layout: Linear pinning
- Number of positions: 3
- Number of connections: 6
- Number of potentials: 6
- Assembly: SKEDD - Direct plug-in technology
- Locking: Self-locking flange
- Dimensions: Length 125 mm, width as per model, height as per model
- Temperature range: -55°C to +105°C (operation)
- Certification: UL Recognized, VDE approved, IEC 61984 compliant
- Environmental resistance: IP20, withstands -55°C to +105°C
- Climatic tests: IEC 6988, ISO 6988
- Creepage and clearance distances: ≥1.5mm in accordance with IEC 60664-1
Buy the Phoenix Contact CDDC153PV35 – Reliable PCB Connectors for Industrial Applications
Order the Phoenix Contact PCB Connector CDDC 1.5/3-PV-3.5 online today for fast, secure, and reliable PCB connections. Designed with SKEDD technology, it ensures vibration resistance and easy hand insertion. Its compact design supports 8A current at 160V and accommodates conductors from 26 to 16 AWG. Made of thermoplastic with flame retardant properties, this connector is suitable for industrial environments. Benefit from its high packing density, solid locking mechanism, and broad application range. Purchase now for quality, efficiency, and long-lasting performance.
Get Phoenix Contact CDDC153PV35 today—built for precision, durability, and high-density PCB connectivity.
