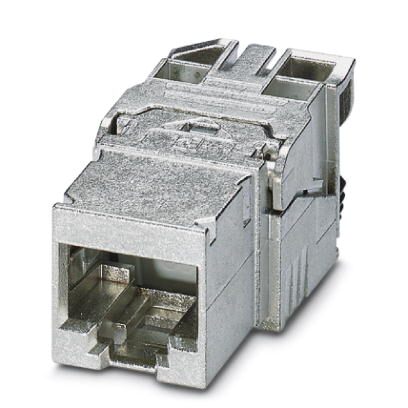

Phoenix Contact CUCIJ1ZNISR4IDC8 RJ45 Socket Insert
The PHOENIX CONTACT CUC-I-J1ZNI-S/R4IDC8 RJ45 socket insert is a crucial component for establishing high-speed network connections in industrial environments. Its robust zinc die-cast housing and PC contact carrier provide durability and reliable performance. The gold-plated contacts ensure excellent signal integrity and low contact resistance, while the IDC connection method simplifies termination. This insert is ideal for applications requiring secure and high-bandwidth data transfer, such as industrial automation, networking equipment, and data centers. It offers a compact design and is suitable for various panel mounting configurations.
Phoenix Contact CUCIJ1ZNISR4IDC8 RJ45 Socket Insert Specifications:
- Number of positions: 8
- Number of slots: 1
- Connection profile: RJ45
- Insertion/withdrawal cycles: ≥ 750
- Connection method: IDC connection
- Connection cross section AWG: 26 ... 22 (solid/stranded)
- External cable diameter: 4.5 mm ... 9 mm
- Wire diameter: 0.4 mm ... 0.65 mm
- Wire diameter including insulation: 0.8 mm ... 1.6 mm
- Insulation resistance: > 500 MΩ (100 V DC)
- Degree of protection: IP20
- Ambient temperature (operation): -10 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Housing material: Zinc die-cast
- Contact carrier material: PC
- Contact material: CuSn
- Contact surface material: Gold over nickel
- GRP transmission properties: CAT6A
- Transmission speed: 10 Gbps
- Frequency range: 500 MHz
- Rated voltage (III/3): 1000 V DC
- China RoHS: Environmentally Friendly Use Period = 50
Buy the CUC-I-J1ZNI-S/R4IDC8 PHOENIX CONTACT RJ45 Socket Insert | myMectronic
Secure your network connections with the genuine PHOENIX CONTACT CUC-I-J1ZNI-S/R4IDC8 RJ45 socket insert – buy now for reliable performance and peace of mind.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact CUCIJ1ZNISR4IDC8?
You can click on the BUY or RFQ button to purchase CUCIJ1ZNISR4IDC8 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part CUCIJ1ZNISR4IDC8?
You can download the CUCIJ1ZNISR4IDC8 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of CUCIJ1ZNISR4IDC8?
Phoenix Contact
