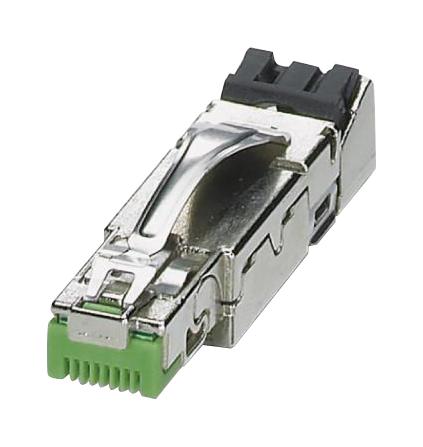

Phoenix Contact CUCINDC1ZNISR4IE8 RJ45 Industrial Connector
The PHOENIX CONTACT CUC-IND-C1ZNI-S/R4IE8 RJ45 connector is a robust solution for industrial networking applications. Its IP20 rating provides protection against dust and light contact, making it suitable for harsh environments. The connector utilizes an IDC (Insulation Displacement Connector) fast connection method, simplifying installation and reducing assembly time. It supports data transmission speeds up to 1 Gbps and is compliant with CAT5 (IEC 11801:2002) standards. Constructed with a zinc die-cast housing and copper alloy contacts with gold plating, this connector offers excellent durability and signal integrity. It is ideal for applications requiring reliable and secure data connectivity in industrial settings.
Phoenix Contact CUCINDC1ZNISR4IE8 RJ45 Industrial Connector Specifications:
- Number of positions: 8
- Degree of protection: IP20
- Transmission speed: 1 Gbps
- Category: CAT5 (IEC 11801:2002)
- Material (Housing): Zinc die-cast
- Connection method: IDC fast connection
- Connection cross section AWG: 26-24
- Cable outlet: straight
- Max. cable diameter: 5-9 mm
- Ambient temperature (operation): -40 to 70 °C
- Flammability rating (UL 94): V0
- Contact resistance (Wire – IDC): 0.001 Ω
- Contact resistance (Litz wires – IDC): 0.005 Ω
- Rated current: 1.75 A
- Rated voltage (III/3): 50 V
- China RoHS: Environmentally Friendly Use Period = 50
