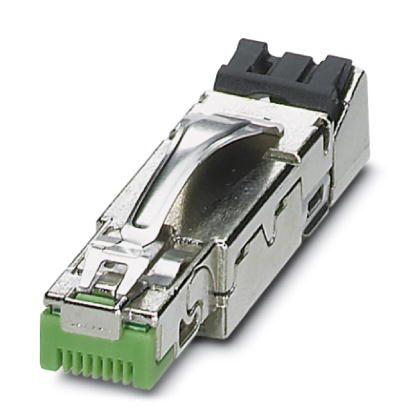

Phoenix Contact CUCINDC1ZNISR4IP8 RJ45 Industrial Connector
The PHOENIX CONTACT CUC-IND-C1ZNI-S/R4IP8 RJ45 connector is a robust solution for industrial networking applications. Its zinc die-cast housing provides excellent shielding and resistance to shock and vibration. The connector supports CAT5 speeds up to 1 Gbps and features an IDC fast connection for simplified termination. Designed for harsh environments, it offers reliable data transmission and is ideal for industrial automation, control systems, and networking equipment.
Phoenix Contact CUCINDC1ZNISR4IP8 RJ45 Industrial Connector Specifications:
- Number of positions: 8
- Degree of protection: IP20
- Transmission speed: 1 GBit/s
- Category: CAT5 (IEC 11801:2002)
- Material: Zinc die-cast
- Connection method: IDC fast connection
- Connection cross section: AWG 23-22
- Cable exit: straight
- Insertion/withdrawal cycles: ≥ 750
- Conductor cross section: 0.23 mm² ... 0.32 mm² (solid)
- Connection cross section AWG: 23 ... 22 (solid)
- Max. cable diameter: 5 mm ... 9 mm
- External cable diameter: 5 mm ... 9 mm
- Wire diameter including insulation: ≤ 1.6 mm
- Ambient temperature (operation): -40 °C ... 70 °C
- Flammability rating according to UL 94: V0
- Housing material: Zinc die-cast
- Contact carrier material: PC
- Contact material: Copper alloy
- Contact surface material: Gold over nickel
- Frequency range: to 100 MHz
- Rated current: 1.75 A
- Overvoltage category: I
- Contact resistance (Wire – IDC): 0.001 Ω
- Contact resistance (Litz wires – IDC): 0.005 Ω
- Packing unit: 1 STK
- Weight per Piece (excluding packing): 40.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 27260701
- eCl@ss 5.0: 27143424
- eCl@ss 5.1: 27143424
- eCl@ss 6.0: 27261204
- eCl@ss 7.0: 27440205
- eCl@ss 8.0: 27440101
- eCl@ss 9.0: 27440101
- ETIM 5.0: EC002636
Buy the CUC-IND-C1ZNI-S/R4IP8 PHOENIX CONTACT RJ45 Industrial Connector | myMectronic
Securely purchase the PHOENIX CONTACT CUC-IND-C1ZNI-S/R4IP8 RJ45 connector online for reliable industrial connectivity.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact CUCINDC1ZNISR4IP8?
You can click on the BUY or RFQ button to purchase CUCINDC1ZNISR4IP8 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part CUCINDC1ZNISR4IP8?
You can download the CUCINDC1ZNISR4IP8 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of CUCINDC1ZNISR4IP8?
Phoenix Contact
