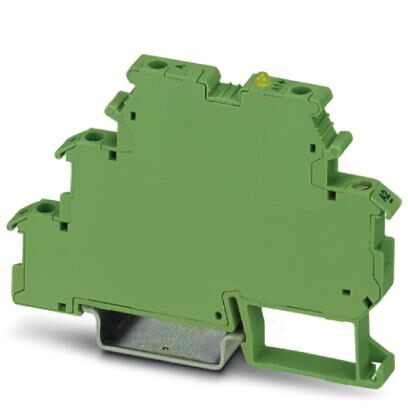

Phoenix Contact DEKOE24DC48DC100 Solid-State Relay Terminal Block
The PHOENIX CONTACT DEK-OE- 24DC/ 48DC/100 solid-state relay terminal block provides a reliable and efficient solution for switching applications. It offers wear-free operation up to 24 V DC/10 A or 240 V AC/800 mA, along with integrated input and output protective circuits. The electrical isolation up to 2.5 kVrms and status indicator enhance safety and monitoring capabilities. This terminal block is ideal for industrial automation, control systems, and other applications requiring reliable solid-state switching.
Phoenix Contact DEKOE24DC48DC100 Solid-State Relay Terminal Block Specifications:
- Input nominal voltage UN: 24 V DC
- Input voltage range: 0.8 ... 1.2
- Switching threshold '0' signal: ≤ 0.4
- Switching threshold '1' signal: ≥ 0.8
- Typical input current at UN: 7 mA
- Typical response time: 20 µs
- Typical turn-off time: 200 µs
- Operating voltage display: Green LED
- Type of protection (input): Protection against polarity reversal
- Transmission frequency: 300 Hz
- Power dissipation for nominal condition: 10 mW
- Output voltage range: 3 V DC ... 48 V DC
- Limiting continuous current: 100 mA
- Voltage drop at max. limiting current: ≤ 0.9 V
- Output circuit: 2-conductor floating, 3-conductor ground-referenced
- Type of protection (output): Protection against polarity reversal
- Free-wheeling diode: Yes
- Polarity protection diode: Yes
- Damping diode: Yes
- Output resistor: approx. 22 kΩ (for 3-wire operation)
- Connection method (input/output): Screw connection
- Stripping length (input/output): 8 mm
- Screw thread: M3
- Conductor cross section solid (input/output): 0.2 mm² ... 2.5 mm²
- Conductor cross section flexible (input/output): 0.2 mm² ... 2.5 mm²
- AWG conductor cross section (input/output): 24 ... 14
- Torque (input/output): 0.5 Nm
- Test voltage input/output: 2.5 kV AC
- Mounting position: any
- Operating mode: 100% operating factor
- Standards/regulations: IEC 60664, EN 50178, IEC 62103
- Rated surge voltage/insulation: Basic insulation
- Pollution degree: 2
- Surge voltage category: III
- Width: 6.2 mm
- Height: 80 mm
- Depth: 56 mm
- Ambient temperature (operation): -20 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Packing unit: 1 pc
- Custom tariff number: 85364190
- Country of origin: China
