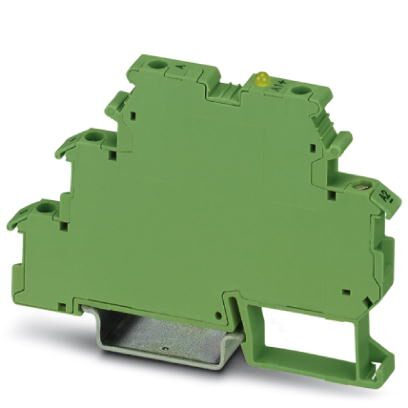

Phoenix Contact DEKOE5DC24DC100KHZ Solid-State Relay Terminal Block
The PHOENIX CONTACT DEK-OE- 5DC/ 24DC/100KHZ solid-state relay terminal block provides a robust and efficient solution for various industrial automation and control applications. It operates with a 5V DC input and delivers an output voltage range of 14-30V DC at a limiting continuous current of 50mA. Key features include a 100 kHz transmission frequency, a push/pull stage for enhanced switching capabilities, and interference suppression via a capacitor on the input side. The device also incorporates polarity protection and surge protection for increased reliability and safety in demanding environments. It is suitable for use in PLC counter boards and applications requiring high-speed switching.
Phoenix Contact DEKOE5DC24DC100KHZ Solid-State Relay Terminal Block Specifications:
- Packing unit: 1 pc
- GTIN: None
- Weight per Piece (excluding packing): 24.44 g
- Custom tariff number: 85364190
- Country of origin: China
- Nominal input voltage UN: 5 V DC
- Input voltage range in reference to UN: 0.5 ... 1.2
- Switching threshold "0" signal in reference to UN: ≤ 0.3
- Switching threshold "1" signal in reference to UN: ≥ 0.5
- Typical input current at UN: 8 mA
- Typical response time: 1 µs
- Typical turn-off time: 2 µs
- Operating voltage display: Yellow LED
- Type of protection: Protection against polarity reversal
- Surge protection: None
- Protective circuit/component (input): Polarity protection diode
- Transmission frequency: 100 kHz
- Output voltage range: 14 V DC ... 30 V DC
- Limiting continuous current: 50 mA
- Quiescent current: 15 mA
- Voltage drop at max. limiting continuous current: ≤ 2.2 V DC
- Output circuit: 3-conductor push-pull, ground referenced
- Protective circuit/component (output): Suppressor diode
- Connection name (input): Input side
- Connection method (input): Screw connection
- Stripping length (input): 8 mm
- Screw thread (input): M3
- Conductor cross section solid (input): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (input): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (input): 24 ... 12
- Torque (input): 0.5 Nm
- Connection name (output): Output side
- Connection method (output): Screw connection
- Stripping length (output): 8 mm
- Screw thread (output): M3
- Conductor cross section solid (output): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (output): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (output): 24 ... 12
- Torque (output): 0.5 Nm
- Test voltage input/output: 2.5 kV AC
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Standards/regulations (1): IEC 60664
- Standards/regulations (2): EN 50178
- Standards/regulations (3): IEC 62103
- Rated surge voltage/insulation: Basic insulation
- Degree of pollution: 2
- Overvoltage category: II
- eCl@ss 4.0: 27371102
- eCl@ss 4.1: 27371102
- eCl@ss 5.0: 27371001
- eCl@ss 5.1: 27371001
- eCl@ss 6.0: 27371001
- eCl@ss 7.0: 27371001
- eCl@ss 8.0: 27371604
- ETIM 2.0: EC001504
- ETIM 3.0: EC001504
- ETIM 4.0: EC001504
- ETIM 5.0: EC001504
- UNSPSC 6.01: 30211916
- UNSPSC 7.0901: 39121542
- UNSPSC 11: 39121542
- UNSPSC 12.01: 39121542
- UNSPSC 13.2: 39121542
