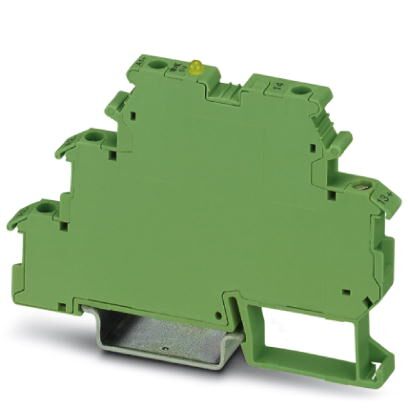

Phoenix Contact DEKOV5DC24DC3 Solid-State Relay Terminal Block
The PHOENIX CONTACT DEK-OV- 5DC/ 24DC/ 3 solid-state relay terminal block provides a compact and reliable solution for switching DC loads. With an input voltage of 5V DC and an output voltage range of 3-30V DC, it offers flexibility in various applications. The integrated output protective circuit and status indicator enhance safety and monitoring capabilities. Its wear-free switching capability ensures long-term reliability, making it suitable for industrial automation, power distribution, and other demanding environments. The terminal block's modular design allows for easy integration into existing systems.
Phoenix Contact DEKOV5DC24DC3 Solid-State Relay Terminal Block Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 24.7 g
- Custom tariff number: 85364190
- Country of origin: China
- Nominal input voltage UN: 5 V DC
- Input voltage range in reference to UN: 0.8 ... 1.2
- Switching threshold "0" signal in reference to UN: ≤ 0.4
- Switching threshold "1" signal in reference to UN: ≥ 0.8
- Typical input current at UN: 11 mA
- Typical response time: 40 µs
- Typical turn-off time: 200 µs
- Operating voltage display: Yellow LED
- Type of protection (input): Reverse polarity protection
- Transmission frequency: 300 Hz
- Output voltage range: 3 V DC ... 30 V DC
- Limiting continuous current: 3 A
- Voltage drop at max. limiting continuous current: ≤ 0.2 V
- Output circuit: 2-wire, floating
- Type of protection (output): Reverse polarity protection
- Protective circuit/component: Polarity protection diode
- Connection method (input): Screw connection
- Stripping length (input): 8 mm
- Screw thread (input): M3
- Conductor cross section solid (input): 0.2 mm² ... 2.5 mm²
- Conductor cross section flexible (input): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (input): 24 ... 14
- Torque (input): 0.5 Nm
- Connection method (output): Screw connection
- Stripping length (output): 8 mm
- Screw thread (output): M3
- Conductor cross section solid (output): 0.2 mm² ... 2.5 mm²
- Conductor cross section flexible (output): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (output): 24 ... 14
- Torque (output): 0.5 Nm
- Test voltage input/output: 2.5 kV AC
- Mounting position: any
- Operating mode: 100% operating factor
- Standards/regulations: IEC 60664, EN 50178, IEC 62103
- Rated surge voltage/insulation: Basic insulation
- Degree of pollution: 2
- Overvoltage category: III
- Width: 6.2 mm
- Height: 80 mm
- Depth: 56 mm
- Ambient temperature (operation): -20 °C ... 60 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Utilization restriction: EMC: class A product
