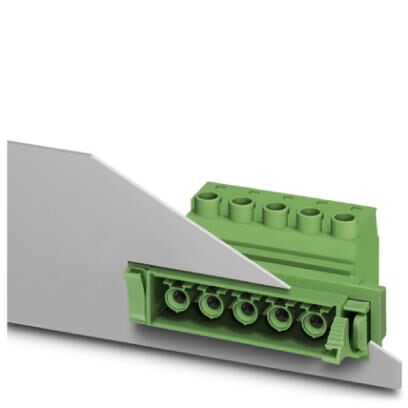

Phoenix Contact DFKIPC162ST1016 IPC 16 Connector
The PHOENIX CONTACT DFK-IPC 16/ 2-ST-10 16 plug connector is designed for robust and reliable electrical connections in industrial applications. Its well-known connection principle ensures worldwide compatibility, while the low temperature rise, thanks to maximum contact force, contributes to efficient operation. The connector supports the connection of two conductors and incorporates a flange system that enables secure fixing to the housing panel, either through tool-free snap-in locking or screws. The integrated double steel spring provides added safety against temperature and power fluctuations, making it suitable for demanding environments. It is ideal for applications requiring touch-proof device outputs or free-hanging cable connections.
Phoenix Contact DFKIPC162ST1016 IPC 16 Connector Specifications:
- Nominal current: 76 A
- Rated voltage (III/2): 1000 V
- Number of positions: 2
- Pitch: 10.16 mm
- Connection method: Screw connection with tension sleeve
- Color: green
- Contact surface: Silver
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Weight per Piece (excluding packing): 25.98 g
- Custom tariff number: 85366990
- Country of origin: Poland
- Rated surge voltage (III/3): 8 kV
- Rated surge voltage (III/2): 8 kV
- Rated surge voltage (II/2): 6 kV
- Rated voltage (III/3): 1000 V
- Rated voltage (II/2): 1000 V
- Connection in acc. with standard: EN-VDE
- Nominal cross section: 16 mm²
- Maximum load current: 76 A
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Stripping length: 12 mm
- Conductor cross section solid min.: 0.75 mm²
- Conductor cross section solid max.: 16 mm²
- Conductor cross section flexible min.: 0.75 mm²
- Conductor cross section flexible max.: 16 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 16 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 16 mm²
- Conductor cross section AWG min.: 18
- Conductor cross section AWG max.: 6
- 2 conductors with same cross section, solid min.: 0.75 mm²
- 2 conductors with same cross section, solid max.: 6 mm²
- 2 conductors with same cross section, stranded min.: 0.75 mm²
- 2 conductors with same cross section, stranded max.: 6 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 6 mm²
- Minimum AWG according to UL/CUL: 20
- Maximum AWG according to UL/CUL: 6
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 27260701
- eCl@ss 5.0: 27260701
- eCl@ss 5.1: 27141190
- eCl@ss 6.0: 27260704
- eCl@ss 7.0: 27440402
- eCl@ss 8.0: 27141134
- eCl@ss 9.0: 27141134
- ETIM 3.0: EC001121
- ETIM 4.0: EC002638
- ETIM 5.0: EC001283
- UNSPSC 6.01: 30211810
- UNSPSC 7.0901: 39121409
- UNSPSC 11: 39121409
- UNSPSC 12.01: 39121409
- UNSPSC 13.2: 39121409
