Phoenix Contact DFKMSTB2511STF508LR Feed-through connector
The DFK-MSTB 2,5/11-STF-5,08-LR is a green feed-through connector designed for secure and flexible wiring in industrial automation. It features 11 positions with a pitch of 5.08 mm, a rated current of 12 A, and a rated voltage of 320 V. The screw connection with tension sleeve ensures reliable contact, while the tin-plated contact surface provides excellent conductivity. Suitable for PCB applications, it complies with high safety standards, and can be combined with the MSTB 2,5 range for versatile wiring solutions. The connector supports robust mechanical and electrical performance in various environmental conditions.
Phoenix Contact DFKMSTB2511STF508LR Feed-through connector Specifications:
- Number of positions: 11
- Pitch: 5.08 mm
- Rated current: 12 A
- Rated voltage: 320 V (III/2)
- Connection method: Screw connection with tension sleeve
- Contact surface: Tin-plated
- Material: PA housing, Cu alloy contact
- Housing color: Green (6021)
- Operating temperature: -40°C to 100°C
- Insulating material group: I
- Flammability rating: UL 94VO
- Dimensions: Length 19.3 mm, Width 80.85 mm, Height 16.5 mm
- Minimum clearance inhomogeneous field: 3 mm
- Minimum creepage distance: 3 mm
- Solder pin length: 3.5 mm
- Test voltages: Impulse withstand voltage 48 kV, Power frequency 2.21 kV
- Environmental rating: IP20

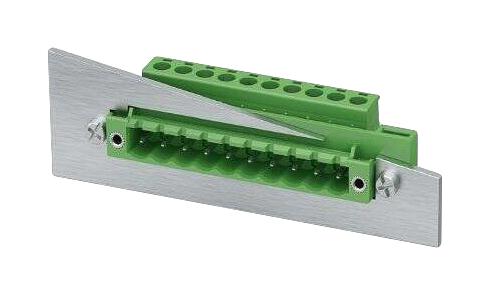

Buy the Buy Phoenix Contact Feed-through Connector Part Number DFKMSTB2511STF508LR Online
Enhance your wiring setup with the Phoenix Contact feed-through connector. Designed for PCB applications, it offers 11 positions, a high rated current of 12 A, and a rated voltage of 320 V. Featuring a screw connection with tension sleeve and tin-plated contact surface, it ensures durable and reliable electrical performance. Its compact dimensions, green housing, and compliance with safety standards make it an ideal choice for industrial automation and control panels. Order online today to streamline your projects with quality and precision.
Order your Phoenix Contact DFK-MSTB 2,5/11-STF-5,08-LR feed-through connector today and ensure flexible, reliable wiring for your industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact DFKMSTB2511STF508LR?
You can click on the BUY or RFQ button to purchase DFKMSTB2511STF508LR from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part DFKMSTB2511STF508LR?
You can download the DFKMSTB2511STF508LR datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of DFKMSTB2511STF508LR?
Phoenix Contact
