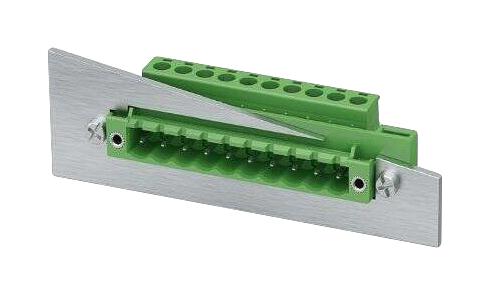

Phoenix Contact DFKMSTB2513STF508LR Industrial Feed-through Connector
The DFK-MSTB 2,5/13-STF-5,08-LR is a green feed-through connector designed for reliable electrical connections in industrial automation and control systems. It features a screw connection with tension sleeve, 13 positions, and a pitch of 5.08 mm. Constructed with tin-plated copper contact surfaces and a durable PA insulating housing, it supports a nominal current of 12 A and rated voltage of 320 V (III/2). Suitable for assembly in various environments, it passes rigorous mechanical and climatic tests, ensuring long-lasting, safe operations in industrial settings.
Phoenix Contact DFKMSTB2513STF508LR Industrial Feed-through Connector Specifications:
- Number of positions: 13
- Pitch: 5.08 mm
- Nominal current: 12 A
- Rated voltage: 320 V (III/2)
- Connection method: Screw connection with tension sleeve
- Contact surface: Tin-plated copper
- Housing material: Polyamide (PA)
- Housing color: Green (6021)
- Contact wire cross section: 0.2 mm² to 2.5 mm² solid and flexible, with ferrules up to 2.5 mm²
- Stripping length: 7 mm
- Dimensions: Length 19.3 mm, Width 16.5 mm, Height 16.5 mm
- Temperature range: Storage -40°C to 70°C, Operation -40°C to 100°C
- UL flammability rating: V-0, glow wire: 850°C
- Certifications: UL Listed, IEC 60999-1 tested for pull-out and damage detection
- Mechanical durability: 25 insertion and withdrawal cycles
- Environmental: IP20 protection class, suitable for industrial environments
- Standards: IEC 60664-1 (creepage and clearance), IEC 61984 (connector safety)
Buy the Phoenix Contact DFKMSTB2513STF508LR – Reliable Feed-through Connector for Industrial Applications
Purchase the Phoenix Contact DFK-MSTB 2,5/13-STF-5,08-LR today to ensure reliable electrical connections in your automation projects. This high-quality connector features 13 positions with a pitch of 5.08 mm, supporting 12 A and rated at 320 V (III/2). Its robust design includes tin-plated copper contacts and a durable PA housing, providing long-term performance in industrial environments. Easy to assemble with screw connections, it has undergone rigorous testing for mechanical and climatic durability. Order online now for fast delivery and trusted quality.
Get Phoenix Contact DFK-MSTB 2.5/13-STF-5.08-LR today—built for precision and long-lasting durability in industrial automation.
