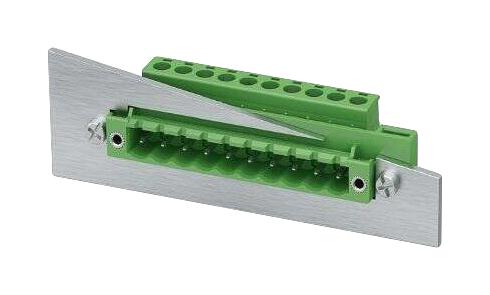

Phoenix Contact DFKMSTB2514STF508LR Feed-through Connector
The DFK-MSTB 2,5/14-STF-5,08-LR is a reliable feed-through connector designed for industrial automation and control systems. It features 14 positions with a 5.08 mm pitch, screw connection with tension sleeve, and a green housing made of insulating PA. Contact surfaces are tin-plated, ensuring excellent conductivity and corrosion resistance. Rated for 12 A and 320 V, it offers robust mechanical and electrical performance, making it suitable for panel feed-through applications in various industrial environments, compliant with relevant standards for safety and durability.
Phoenix Contact DFKMSTB2514STF508LR Feed-through Connector Specifications:
- Number of positions: 14
- Pitch: 5.08 mm
- Contact surface: Tin-plated
- Housing color: Green
- Housing material: PA
- Rated current: 12 A
- Rated voltage: 320 V (III/2)
- Connection method: Screw connection with tension sleeve
- Conductor cross section: 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG: 24 ... 12
- Flammability rating: UL 94 V-0
- Temperature range (operation): -40 °C ... 100 °C
- Ambient temperature during storage/transport: -40 °C ... 70 °C
- Assembly temperature range: -5 °C ... 100 °C
- Dimensions: Length 19.3 mm, Width 96.09 mm, Height 16.5 mm
Buy the Phoenix Contact DFK-MSTB 2,5/14-STF-5,08-LR – Reliable Feed-through for Industrial Applications
Secure your industrial connectivity with the DFK-MSTB 2,5/14-STF-5,08-LR. This 14-position feed-through connector features a 5.08 mm pitch, screw connection with tension sleeve, and tin-plated contacts for high conductivity. Its robust green housing made of durable PA ensures reliable operation in harsh environments. Rated for 12 A and 320 V, it complies with industry standards for safety, durability, and performance. Ideal for panel feed-throughs in automation, control systems, and industrial equipment. Order online today and optimize your installation process.
Buy Phoenix Contact DFK-MSTB 2,5/14-STF-5,08-LR now and experience unmatched reliability and performance in your automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact DFKMSTB2514STF508LR?
You can click on the BUY or RFQ button to purchase DFKMSTB2514STF508LR from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part DFKMSTB2514STF508LR?
You can download the DFKMSTB2514STF508LR datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of DFKMSTB2514STF508LR?
Phoenix Contact
