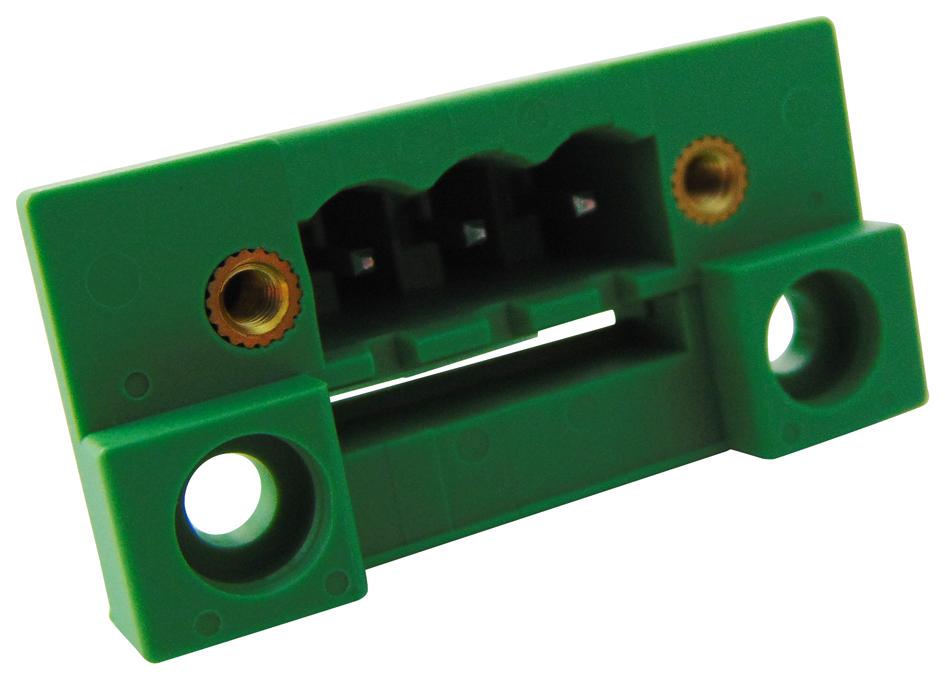

Phoenix Contact DFKMSTB253GF508 Control Base Strip
The DFK-MSTB 2,5/3-GF-5,08 is a versatile base strip designed for secure and reliable electrical connections in control panels and device housings. It features a compact design with a pitch of 5.08 mm and supports solder or slip-on connections, making installation straightforward. Rated for 12 A and 320 V, it offers high contact quality with tin-plated surfaces. Suitable for mounting in panels up to 6 mm thick using M3 x 10 screws, it ensures robust performance with environmental compliance for industrial applications. Its green color and modular design facilitate easy integration into various automation and control systems.
Phoenix Contact DFKMSTB253GF508 Control Base Strip Specifications:
- Number of positions: 3
- Pitch: 5.08 mm
- Rated current: 12 A
- Rated voltage: 320 V (III/2)
- Connection method: Solder/Slip-on
- Connection cross section: 0.2-2.5 mm²
- Contact surface: Tin
- Material: PA
- Flammability rating: UL 94V-2
- Dimensions: Length 17.5mm, Height 29.5mm, Width 35.56mm
- Dimension a: 10.16 mm
- Slip-on connection size: 2.8 x 0.8 mm
- Maximum load current: 12A
- Mounting: Direct, with M3 x 10 screws for panels up to 6mm
- Standards: EN-VDE, UL 94V-2, CSA, EAC
- Environmental compliance: China RoHS, Environmentally Friendly Use Period 50
Buy the Buy Phoenix Contact Control Base Strip Part Number DFKMSTB253GF508 Online
Enhance your control and automation setups with the Phoenix Contact Control Base Strip. Offering three positions, a pitch of 5.08 mm, and rated for 12A and 320V, it supports solder and slip-on connections for seamless integration. Designed for panels up to 6 mm thick, its reliable construction with tin-plated contact surfaces ensures durability in industrial environments. Easy to mount and compliant with international standards, this base strip provides a dependable solution for control panels, automation systems, and electrical connections, simplifying installation and maintenance.
Buy Phoenix Contact DFK-MSTB 2,5/3-GF-5,08 now and experience reliable, secure connections in control panels with easy mounting and robust design.
