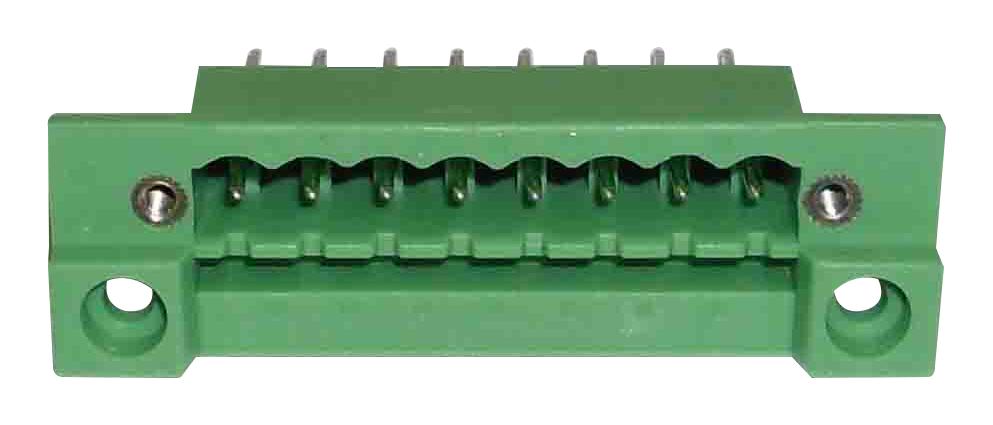

Phoenix Contact DFKMSTB258G508 Base Strip Connector
The PHOENIX CONTACT DFK-MSTB 2 5/ 8-G-5 08 base strip connector provides a reliable connection solution for various industrial applications. Designed to be used with MSTB or FKC plugs, it offers flexibility with both solder and slip-on connection methods. The connector's robust construction allows for secure mounting on panels up to 6mm thick, making it suitable for a wide range of device and housing panel applications. It is ideal for applications requiring a secure and organized connection system.
Phoenix Contact DFKMSTB258G508 Base Strip Connector Specifications:
- Nominal current: 12 A
- Rated voltage (III/2): 320 V
- Number of positions: 8
- Pitch: 5.08 mm
- Connection method: Solder/Slip-on connection
- Color: green
- Contact surface: Tin
- Mounting: Direct mounting
- Packing unit: 1 pc
- Weight per Piece: 8.63 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Dimension a: 35.56 mm
- Range of articles: DFK-MSTB 2,5/..-G
- Insulating material group: I
- Rated surge voltage (III/3): 4 kV
- Rated surge voltage (III/2): 4 kV
- Rated surge voltage (II/2): 4 kV
- Rated voltage (III/3): 320 V
- Rated voltage (II/2): 630 V
- Connection in acc. with standard: EN-VDE
- Nominal cross section: 2.5 mm²
- Maximum load current: 12 A
- Insulating material: PA
- Flammability rating according to UL 94: V2
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 27260701
- eCl@ss 5.0: 27260701
- eCl@ss 5.1: 27141190
- eCl@ss 6.0: 27260704
- eCl@ss 7.0: 27440402
- eCl@ss 8.0: 27141134
- eCl@ss 9.0: 27141134
- ETIM 3.0: EC001283
- ETIM 4.0: EC001283
- ETIM 5.0: EC001283
- UNSPSC 6.01: 30211810
- UNSPSC 7.0901: 39121409
- UNSPSC 11: 39121409
- UNSPSC 12.01: 39121409
- UNSPSC 13.2: 39121409
