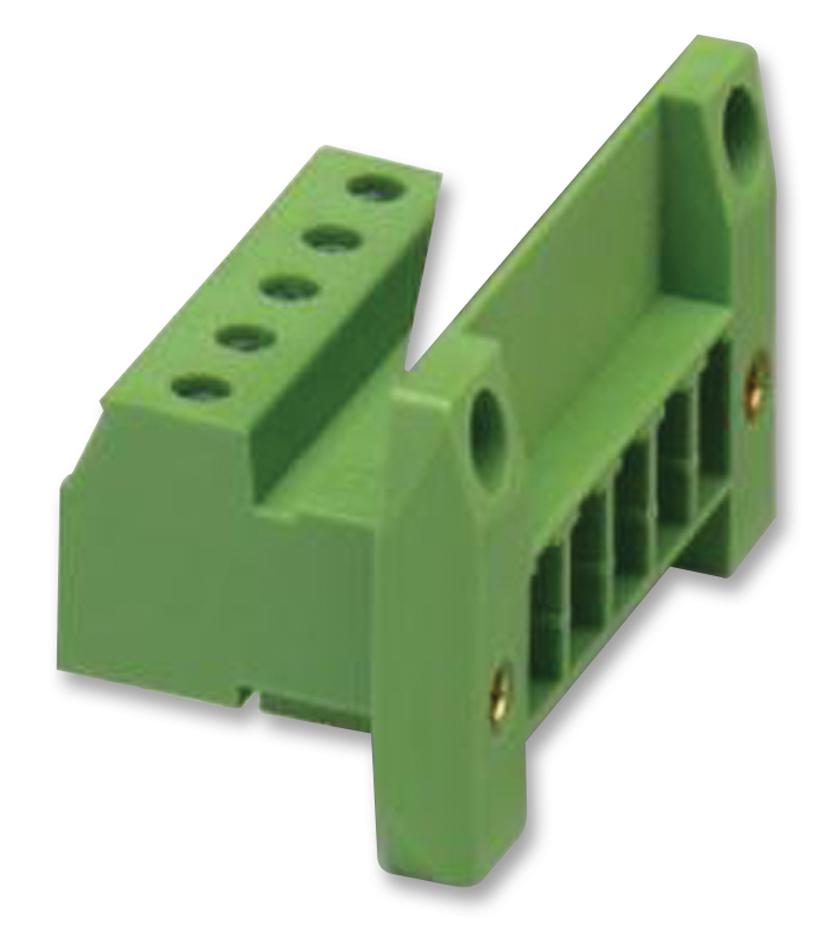

Phoenix Contact DFKPC43GF762 Terminal Block
The base strip DFK-PC 4/ 3-GF-7,62 is a versatile terminal block connector designed for professional wiring and industrial automation. It features a screw connection with tension sleeve for secure conductors, rated for 20 A and 630 V (III/2). Its compact dimensions, flexible mounting options, and tin contact surface ensure reliable electrical connections in control panels and machinery. Appropriate for connecting multiple conductors, this terminal strip complies with UL 94 V-0 flammability standards, making it suitable for demanding electrical environments.
Phoenix Contact DFKPC43GF762 Terminal Block Specifications:
- Number of positions: 3
- Pitch: 7.62 mm
- Rated current: 20 A
- Rated voltage (III/2): 630 V
- Max. load current: 20 A
- Connection method: Screw with tension sleeve
- Contact surface: Tin
- Insulating material: PA
- Dimensions: Length 32 mm, Height 30.5 mm, Width 44.48 mm, a dimension 15.24 mm
- Screw thread: M3
- Tightening torque: Min 0.5 Nm, Max 0.6 Nm
- Conductor cross section: Solid min 0.2 mm², max 4 mm², Flexible min 0.2 mm², max 4 mm²
- Flammability rating: UL 94 V-0
- Standards: EN-VDE, CSA, UL Recognized
- Rated surge voltage: 6 kV
- Rated voltage: 400V / 630V / 1000V depending on configuration
- Environmental compliance: China RoHS
Buy the Phoenix Contact Series DFK Series Terminal Block: DFK-PC 4/ 3-GF-7,62
Enhance your electrical installation with the Phoenix Contact terminal block DFK-PC 4/ 3-GF-7,62. Designed with a screw connection method, it offers high current capacity of 20 A and voltage up to 630 V. Its compact size, reliable tin contact surface, and flexible mounting options make it ideal for industrial control panels and automation systems. Complying with UL 94 V-0 flammability standards, it ensures safety and durability in demanding environments. Perfect for connecting multiple conductors securely and efficiently for robust electrical connections.
Buy Phoenix Contact DFK-PC 4/ 3-GF-7,62 now and experience unmatched reliability and performance in industrial wiring and automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact DFKPC43GF762?
You can click on the BUY or RFQ button to purchase DFKPC43GF762 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part DFKPC43GF762?
You can download the DFKPC43GF762 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of DFKPC43GF762?
Phoenix Contact
