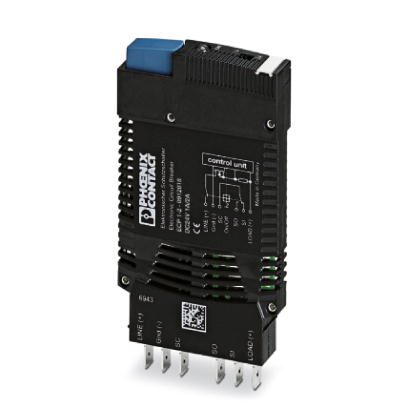

Phoenix Contact ECP12 Electronic Device Circuit Breaker
The Phoenix Contact ECP 1-2 is a sophisticated electronic device circuit breaker ideal for protecting 24V DC load circuits in applications such as switched-mode power supply units. Its compact 12.5mm design minimizes space requirements, while the integrated LED provides clear visual indication of the device's operating or error state. The inclusion of signal contacts allows for remote monitoring and integration into larger control systems. The ECP 1-2 combines active electronic current limitation with proven circuit breaker technology, offering electrical isolation and limiting residual current to 1.8 times the nominal current. It's suitable for applications requiring selective protection and reliable performance.
Phoenix Contact ECP12 Electronic Device Circuit Breaker Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 5 pc
- Weight per Piece (excluding packing): 72.0 g
- Custom tariff number: 85362010
- Country of origin: Germany
- Installation instructions: When mounted in rows without convection cooling, the nominal device current should only be led to a maximum of 80 % due to the thermal effect during continuous operation (100 % operating factor). Parallel connection of multiple load outputs is not permitted.
- Mounting type: On base element
- Color: black
- Overvoltage category: II
- Insulating material: PPS
- Flammability rating according to UL 94: V0
- Fuse: Electronic
- Fuse type: Automatic device
- Rated surge voltage: 0.5 kV
- Operating voltage: 24 V DC
- Nominal current IN: 1 A (adjustable) / 2 A (adjustable)
- Required backup fuse: not required, integrated failsafe element
- Dielectric strength: 1000 V AC (Actuation area) / 500 V AC (Installation area) / 500 V AC (Load circuit signal contact)
- Degree of pollution: 2
- Insulating material group: IIIa
- Switching capacity ICN: Active current limitation
- Closed circuit current I0: typ. 13 mA
- Height: 60 mm
- Width: 12.5 mm
- Depth: 70 mm
- Height NS 35/7,5: 144 mm
- Height NS 35/15: 151.5 mm
- Complete module height: 115 mm
- Complete module width: 38 mm
- Complete module depth: 147.5 mm
- Degree of protection: IP30 (Actuation area)
- Ambient temperature (operation): 0 °C ... 50 °C (non-condensing)
- Connection method: Screw connection
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141116
- eCl@ss 6.0: 27141116
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- ETIM 2.0: EC000899
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- UNSPSC 6.01: 30211812
- UNSPSC 7.0901: 39121411
- UNSPSC 11: 39121411
- UNSPSC 12.01: 39121411
- UNSPSC 13.2: 39121411
