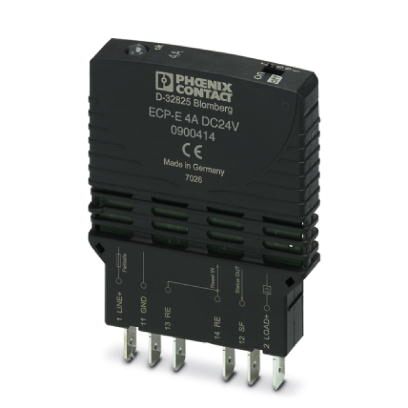

Phoenix Contact ECPE4A Electronic Device Circuit Breaker
The Phoenix Contact ECP-E 4A electronic device circuit breaker is a compact solution for protecting electronic circuits in industrial applications. Its design width of just 12.5 mm makes it ideal for space-constrained environments. The multi-color LED provides clear indication of the operating or error state, and the integrated status output allows for remote monitoring and control. It can be plugged onto TMCP SOCKET M base and offers features like active current limitation and a required backup fuse element. This circuit breaker is suitable for a wide range of applications, including power distribution and control systems.
Phoenix Contact ECPE4A Electronic Device Circuit Breaker Specifications:
- Number of positions: 1
- Connection method: Screw connection
- Width: 12.5 mm
- Fuse type: Electronic
- Automatic device: Automatic device
- Mounting type: On base element
- Color: black
- Packing unit: 1 pc
- Weight per Piece: 42.7 g
- Custom tariff number: 85362010
- Country of origin: Germany
- Installation instructions: When mounted in rows without convection cooling, the nominal device current should only be led to a maximum of 80% due to the thermal effect during continuous operation (100% operating factor). Special precautionary measures must be taken in systems or machines, to prevent components from restarting (e.g., use of a safety PLC). Parallel connection of multiple circuit breakers is not permitted.
- Overvoltage category: II
- Insulating material: PA66/6
- Flammability rating according to UL 94: V0
- Rated surge voltage: 0.5 kV
- Operating voltage: 24 V DC
- Nominal current IN: 4 A
- Required backup fuse: not required, integrated failsafe element
- Dielectric strength: max. 32 V DC (Load circuit)
- Degree of pollution: 2
- Insulating material group: I
- Switching capacity ICN: Active current limitation
- Closed-circuit current range I0: typ. 25 mA ±5 mA (When switched on)
- Height: 60 mm
- Depth: 70 mm
- Height NS 35/7,5: 144 mm
- Height NS 35/15: 151.5 mm
- Complete module height: 115 mm
- Complete module width: 38 mm
- Complete module depth: 112.5 mm
- Degree of protection: IP30 (Actuation area)
- Ambient temperature (operation): 0 °C ... 50 °C (non-condensing)
- Standards and Regulations: UL 2367, UL 508, CSA 22.2 No. 14
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141116
- eCl@ss 6.0: 27141116
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- ETIM 2.0: EC000899
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- UNSPSC 6.01: 30211812
- UNSPSC 7.0901: 39121411
- UNSPSC 11: 39121411
- UNSPSC 12.01: 39121411
- UNSPSC 13.2: 39121411
