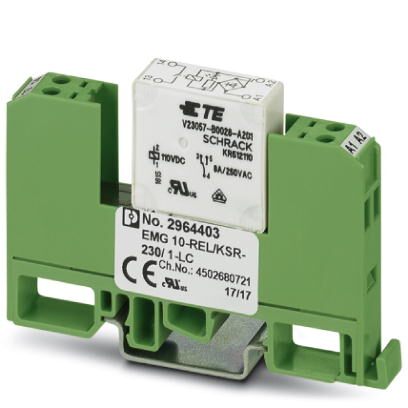

Phoenix Contact EMG10RELKSR2301LC Relay Module with Relay
The PHOENIX CONTACT EMG 10-REL/KSR-230/ 1-LC relay module is designed for reliable switching of medium to large loads. It incorporates a miniature switching relay with AgNi contacts, ensuring robust performance. Key features include safe isolation according to DIN EN 50178 between the coil and contact, an integrated input circuit, and interference suppression. This module is suitable for various industrial applications requiring reliable and isolated relay functionality.
Phoenix Contact EMG10RELKSR2301LC Relay Module with Relay Specifications:
- Packing unit: 10 STK
- GTIN: None
- Width: 10.6 mm
- Height: 75 mm
- Depth: 53.5 mm
- Ambient temperature (operation): -20 °C ... 40 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Nominal input voltage UN: 230 V AC/DC
- Typical input current at UN: 4.8 mA
- Typical response time: 7 ms
- Typical release time: 11 ms
- Protective circuit: Bridge rectifier
- Surge protection: Varistor
- Operating voltage display: Yellow LED
- Power dissipation for nominal condition: 1.1 W
- Contact type: Single contact, 1 N/O contact
- Contact material: AgNi
- Maximum switching voltage: 250 V AC/DC
- Minimum switching voltage: 12 V
- Min. switching current: 100 mA
- Maximum inrush current: 8 A
- Limiting continuous current: 6 A
- Interrupting rating (ohmic load) max.: 1500 VA (for 250 V AC)
- Test voltage relay winding/relay contact: 4 kV AC (50 Hz, 1 min.)
- Operating mode: 100% operating factor
- Degree of protection: IP20
- Mechanical service life: Approx. 2 x 10^7 cycles
- Standards/regulations: IEC 62103
- Rated surge voltage/insulation: 4 kV / basic insulation
- Rated insulation voltage: 260 V AC
- Degree of pollution: 2
- Overvoltage category: III
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Connection name (Coil side): Coil side
- Connection method (Coil side): Screw connection
- Stripping length (Coil side): 8 mm
- Screw thread (Coil side): M3
- Conductor cross section solid (Coil side): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (Coil side): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (Coil side): 24 ... 12
- Connection name (Contact side): Contact side
- Connection method (Contact side): Screw connection
- Stripping length (Contact side): 8 mm
- Screw thread (Contact side): M3
- Conductor cross section solid (Contact side): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (Contact side): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (Contact side): 24 ... 12
- Connection in acc. with standard: CUL
- eCl@ss 4.0: 27371102
- eCl@ss 4.1: 27371102
- eCl@ss 5.0: 27371001
- eCl@ss 5.1: 27371001
- eCl@ss 6.0: 27371001
- eCl@ss 7.0: 27371001
- eCl@ss 8.0: 27371601
- eCl@ss 9.0: 27371601
- ETIM 2.0: EC000196
- ETIM 3.0: EC000196
- ETIM 4.0: EC000196
- ETIM 5.0: EC001437
- UNSPSC 6.01: 30211916
- UNSPSC 7.0901: 39121515
- UNSPSC 11: 39121515
- UNSPSC 12.01: 39121515
- UNSPSC 13.2: 39121515
