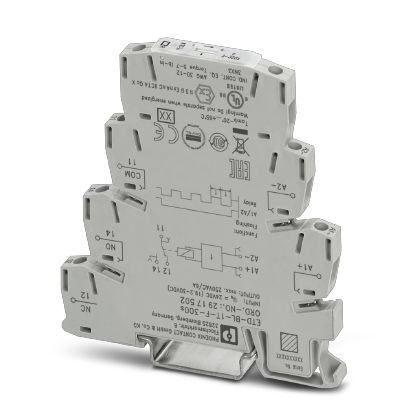

Phoenix Contact ETDBL1TF300S Timer Relay with Flasher
The PHOENIX CONTACT ETD-BL-1T-F-300S timer relay is a compact solution for controlling time sequences in industrial applications. Its narrow 6.2 mm design width makes it suitable for space-constrained environments. The labeled and illuminated thumbwheel allows for precise time setting, protected from accidental modification by a recessed design. This relay offers a flasher function beginning with a pulse and a wide adjustable time range (3 to 300 seconds), making it versatile for various automation and control tasks. It is ideal for applications requiring precise timing and reliable operation in industrial settings.
Phoenix Contact ETDBL1TF300S Timer Relay with Flasher Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 60.0 g
- Custom tariff number: 85364900
- Country of origin: Germany
- Width: 6.2 mm
- Height: 80 mm
- Depth: 86 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -25 °C ... 80 °C
- Permissible humidity (operation): 15 % ... 85 %
- Noise immunity: EN 61000-6-2
- Input voltage range: 24 V DC (19,2 V DC ...30 V DC)
- Function: F: Flashing beginning with pulse
- Time setting range: 3 s ... 300 s
- Contact type: 1 floating PDT
- Output fuse: 6.3 A (fast-blow)
- Status display: Green LED (POWER)
- Mechanical service life: Approx. 2 x 10^7 cycles
- Mounting position: any
- Assembly instructions: on standard DIN rail NS 35 in accordance with EN 60715
- Color: green
- Housing insulation material: Polyamide PA, self-extinguishing
- Rated insulation voltage: 300 V AC (According to EN 50178)
- Conformance: CE-compliant
- ATEX: II 3 G Ex nA nC IIC T4 Gc X
- UL, USA / Canada: UL/C-UL listed UL 508
- GL: GL EMC 1 C
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 30
- Conductor cross section AWG max.: 12
- Stripping length: 8 mm
- Connection method: Screw connection
- Control pulse length: min. 50 ms
- Electromagnetic compatibility: Conformance with EMC Directive 2004/108/EC
- Noise emission: EN 61000-6-4
- Flammability rating according to UL 94: V0
- Low Voltage Directive: Conformance with LV directive 2006/95/EC
- eCl@ss 4.0: 27371103
- eCl@ss 4.1: 27371103
- eCl@ss 5.0: 27371701
- eCl@ss 5.1: 27371701
- eCl@ss 6.0: 27371790
- eCl@ss 7.0: 27371790
- eCl@ss 8.0: 27371605
- eCl@ss 9.0: 27371605
- ETIM 2.0: EC001439
- ETIM 3.0: EC001439
- ETIM 4.0: EC001439
- ETIM 5.0: EC001439
- UNSPSC 6.01: 30211920
- UNSPSC 7.0901: 39121519
- UNSPSC 11: 39121519
- UNSPSC 12.01: 39121519
- UNSPSC 13.2: 39121519
