Phoenix Contact ETDBL1TF30MIN Timer Relay

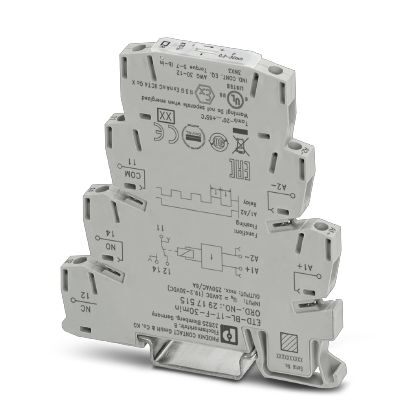

The PHOENIX CONTACT ETD-BL-1T-F-30MIN timer relay is a compact solution for controlling time-dependent processes in industrial automation and control systems. Its narrow 6.2 mm design width allows for space-saving integration into control panels. The adjustable time range, from 0.3 minutes to 30 minutes, provides flexibility in various applications. The front-mounted, labeled thumbwheel allows for easy and precise time setting, protected from accidental modification by a recessed design. This timer relay is suitable for applications requiring precise timing control, such as sequencing operations, controlling heating or cooling cycles, and managing lighting systems. It is designed for reliable performance in demanding industrial environments.
Phoenix Contact ETDBL1TF30MIN Timer Relay Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 60.0 g
- Custom tariff number: 85364900
- Country of origin: Germany
- Width: 6.2 mm
- Height: 80 mm
- Depth: 86 mm
- Ambient temperature (operation): -20 °C ... 65 °C
- Ambient temperature (storage/transport): -25 °C ... 80 °C
- Permissible humidity (operation): 15 % ... 85 %
- Noise immunity: EN 61000-6-2
- Input voltage range: 24 V DC (19,2 V DC ...30 V DC)
- Function: F: Flashing beginning with pulse
- Time setting range: 0.3 min. ... 30 min.
- Contact type: 1 floating PDT
- Interrupting rating (ohmic load) max.: 1125 VA (4.5 A/250 V AC, module mounted in rows, spacing ≤ 5 mm)
- Output fuse: 6.3 A (fast-blow)
- Status display: Green LED (POWER), Yellow LED (relay active)
- Mechanical service life: Approx. 2 x 10^7 cycles
- Mounting position: any
- Assembly instructions: on standard DIN rail NS 35 in accordance with EN 60715
- Color: green
- Housing insulation material: Polyamide PA, self-extinguishing
- Rated insulation voltage: 300 V AC (According to EN 50178)
- Conformance: CE-compliant
- ATEX: II 3 G Ex nA nC IIC T4 Gc X
- UL, USA / Canada: UL/C-UL listed UL 508
- GL: GL EMC 1 C
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 30
- Conductor cross section AWG max.: 12
- Stripping length: 8 mm
- Connection method: Screw connection
- Control pulse length: min. 50 ms
- Electromagnetic compatibility: Conformance with EMC Directive 2004/108/EC
- Noise emission: EN 61000-6-4
- Flammability rating according to UL 94: V0
- Low Voltage Directive: Conformance with LV directive 2006/95/EC
